Piston diameter: 50 mm
Piston rod thread: M12x1.25
Type code: ADN
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Conforms to standard: ISO 21287
Piston rod end: External thread
Position sensing: For proximity sensor
Symbol: 00991217
Variants: Piston rod at one end
Operating pressure: 0.6 bar - 10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Impact energy in the end positions: 1 J
Theoretical force at 6 bar, retracting: 1057 N
Theoretical force at 6 bar, advancing: 1178 N
Moving mass at 0 mm stroke: 140 g
Additional weight per 10 mm stroke: 51 g
Basic weight with 0 mm stroke: 540 g
Additional moving mass per 10 mm stroke: 16 g
Type of mounting: With through-hole: Optionally:: With accessories: With internal thread
Pneumatic connection: G1/8
Note on materials: RoHS-compliant
Cover material: Anodized: Aluminum
Seals material: TPE-U(PUR)
Piston rod material: High-alloy steel
Material of cylinder barrel: Smooth anodized: Wrought aluminum alloy

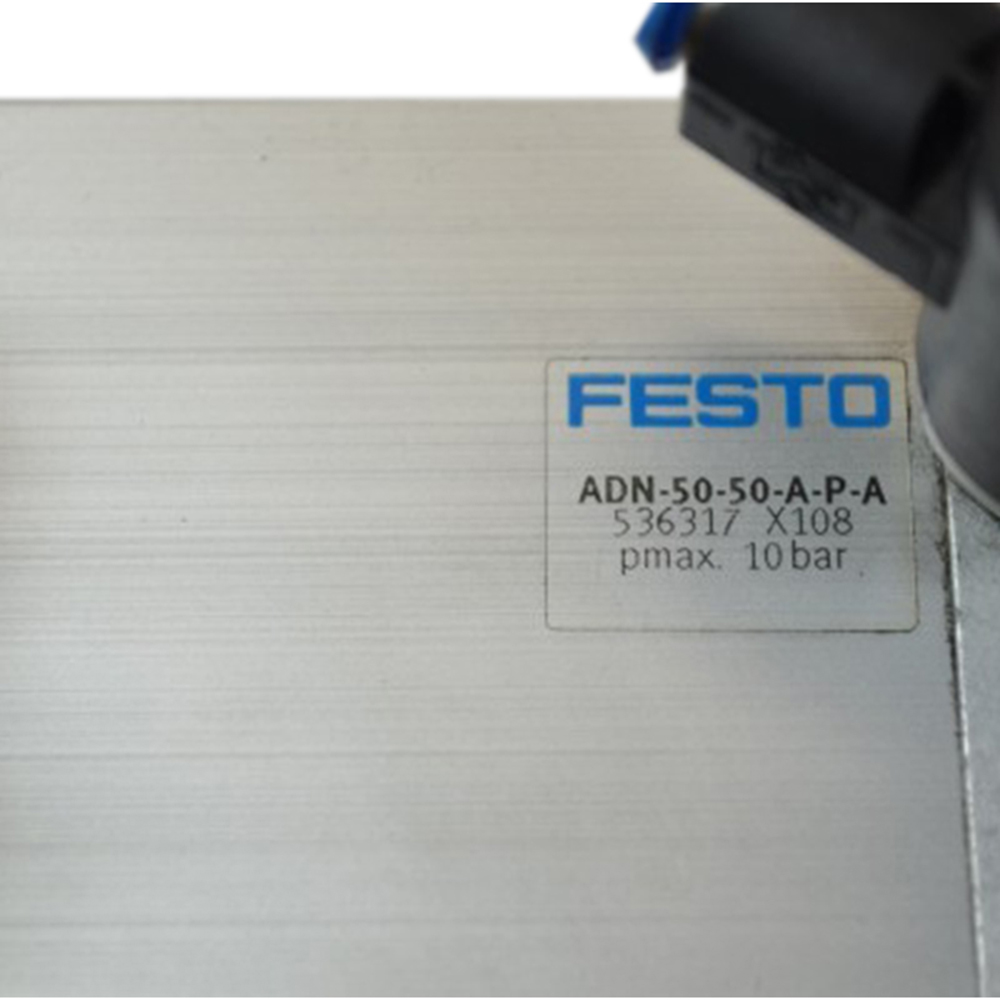

Festo Air Cylinder ADN-50-50-A-P-A
