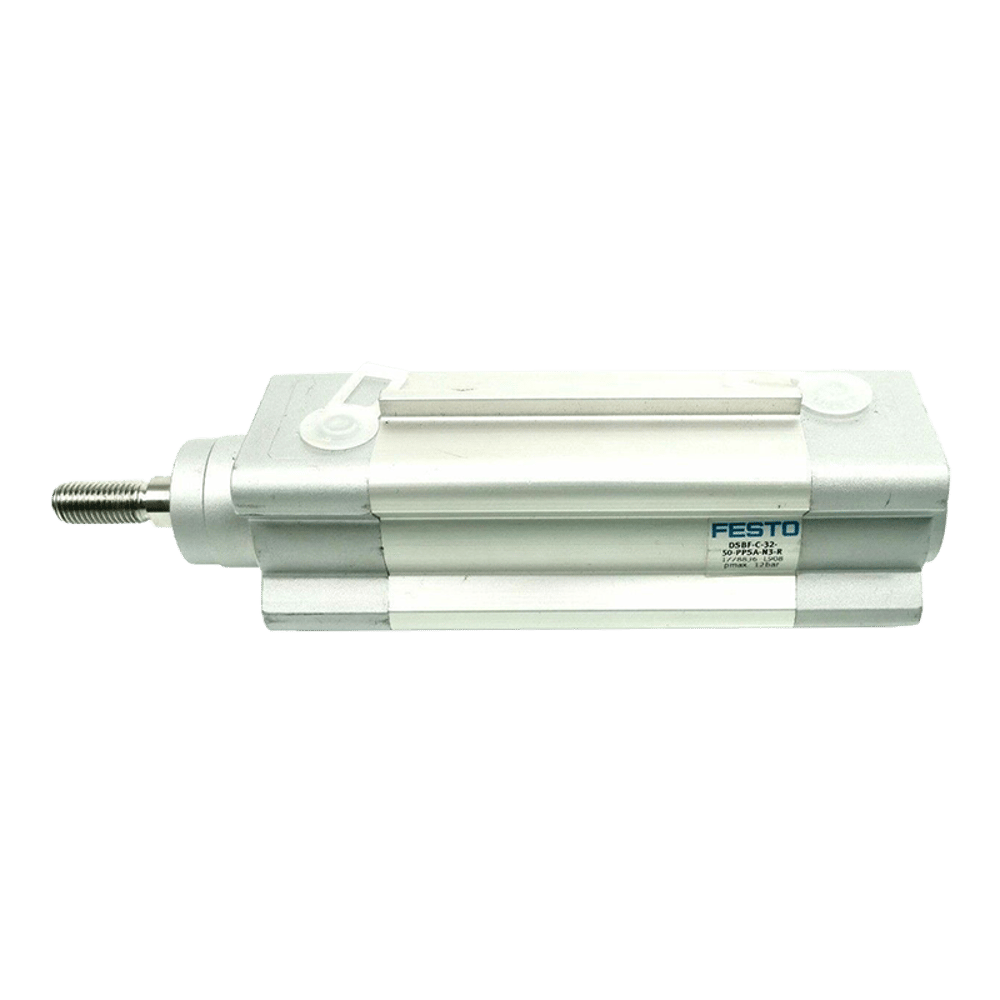

Festo Air Cylinder DSBF-C-32-50-PPSA-N3-R
$ 216 .91
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 2
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
Stroke: 50 mm
Piston diameter: 32 mm
Type code: DSBF
Cushioning: Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Conforms to standard: ISO 15552
Piston rod end: External thread
Design: Piston: Piston rod: Profile barrel
Position sensing: For proximity sensor
Symbol: 00992970
Operating pressure: 0.6 bar - 12 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Impact energy in the end positions: 0.4 J
Cushioning length: 17 mm
Theoretical force at 6 bar, retracting: 415 N
Theoretical force at 6 bar, advancing: 483 N
Type of mounting: With accessories: With internal thread: Optionally:
Pneumatic connection: G1/8
Note on materials: RoHS-compliant
Cover material: Die-cast aluminum: Coated
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: Wrought aluminum alloy: Anodized
Piston diameter: 32 mm
Type code: DSBF
Cushioning: Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Conforms to standard: ISO 15552
Piston rod end: External thread
Design: Piston: Piston rod: Profile barrel
Position sensing: For proximity sensor
Symbol: 00992970
Operating pressure: 0.6 bar - 12 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Impact energy in the end positions: 0.4 J
Cushioning length: 17 mm
Theoretical force at 6 bar, retracting: 415 N
Theoretical force at 6 bar, advancing: 483 N
Type of mounting: With accessories: With internal thread: Optionally:
Pneumatic connection: G1/8
Note on materials: RoHS-compliant
Cover material: Die-cast aluminum: Coated
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: Wrought aluminum alloy: Anodized
