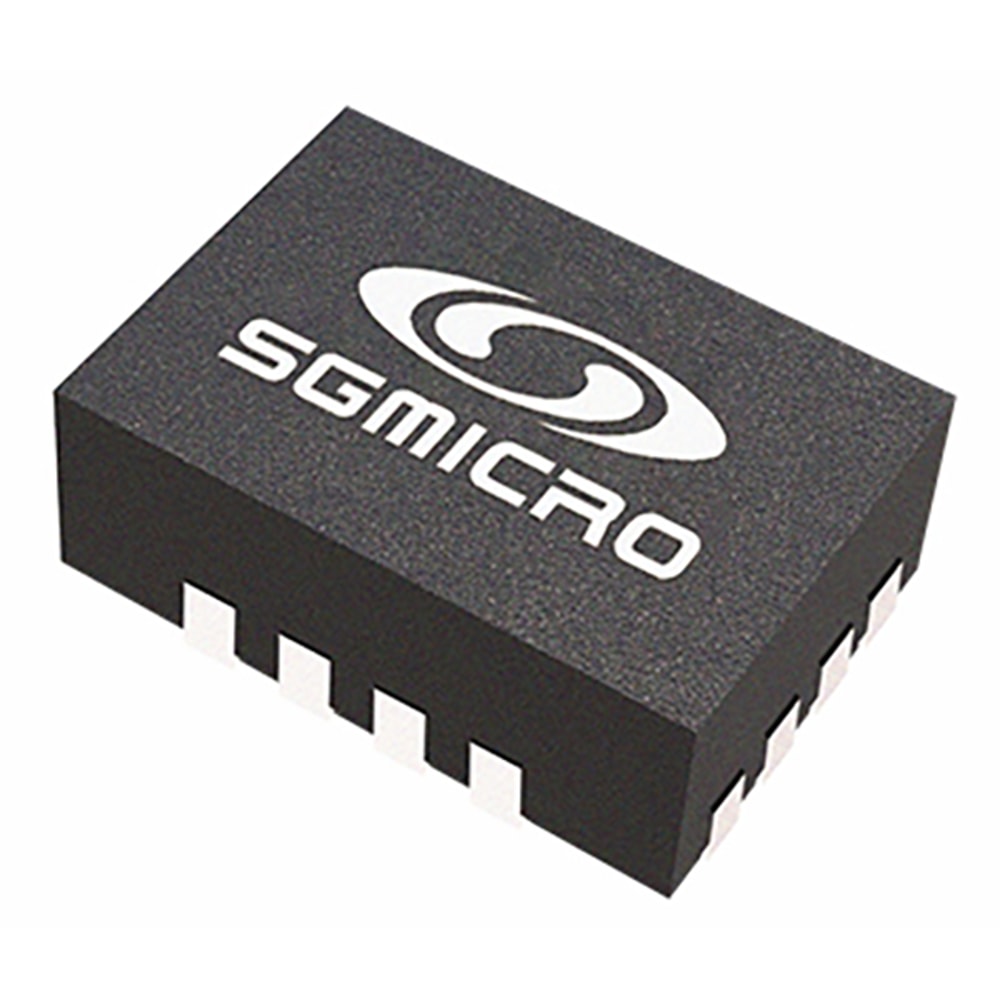

SGMICRO IC Integrated Circuit Chip SGM44601YTQA16/TR
$ 2 .17
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 144
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
The SGMICRO IC is high quality!
Single Supply Voltage Range: 1.8V to 5.5V
-3dB Bandwidth: 300MHz
Low On-Resistance: 4Ω (TYP)
Low On-Resistance Flatness
High Off-Isolation: -75dB at 1MHz
Low Crosstalk: -100dB at 1MHz
Fast Switching Times (V+ = 5V):
tON: 36ns
tOFF: 30ns
Rail-to-Rail Input and Output Operation
TTL/CMOS Compatible
-40℃ to +85℃ Operating Temperature Range
Available in a Green TQFN-2.6×1.8-16L Package
ABSOLUTE MAXIMUM RATINGS
V+ to GND.................................................................0V to 6V
Analog, Digital Voltage Range................ -0.3V to (V+) + 0.3V
Continuous Current NO, NC, or COM.......................±100mA
Junction Temperature.................................................+150℃
Storage Temperature Range .......................-65℃ to +150℃
Lead Temperature (Soldering, 10s)............................+260℃
RECOMMENDED OPERATING CONDITIONS
Supply Voltage Range ........................................1.8V to 5.5V
Operating Temperature Range ......................-40℃ to +85℃
-3dB Bandwidth: 300MHz
Low On-Resistance: 4Ω (TYP)
Low On-Resistance Flatness
High Off-Isolation: -75dB at 1MHz
Low Crosstalk: -100dB at 1MHz
Fast Switching Times (V+ = 5V):
tON: 36ns
tOFF: 30ns
Rail-to-Rail Input and Output Operation
TTL/CMOS Compatible
-40℃ to +85℃ Operating Temperature Range
Available in a Green TQFN-2.6×1.8-16L Package
ABSOLUTE MAXIMUM RATINGS
V+ to GND.................................................................0V to 6V
Analog, Digital Voltage Range................ -0.3V to (V+) + 0.3V
Continuous Current NO, NC, or COM.......................±100mA
Junction Temperature.................................................+150℃
Storage Temperature Range .......................-65℃ to +150℃
Lead Temperature (Soldering, 10s)............................+260℃
RECOMMENDED OPERATING CONDITIONS
Supply Voltage Range ........................................1.8V to 5.5V
Operating Temperature Range ......................-40℃ to +85℃
