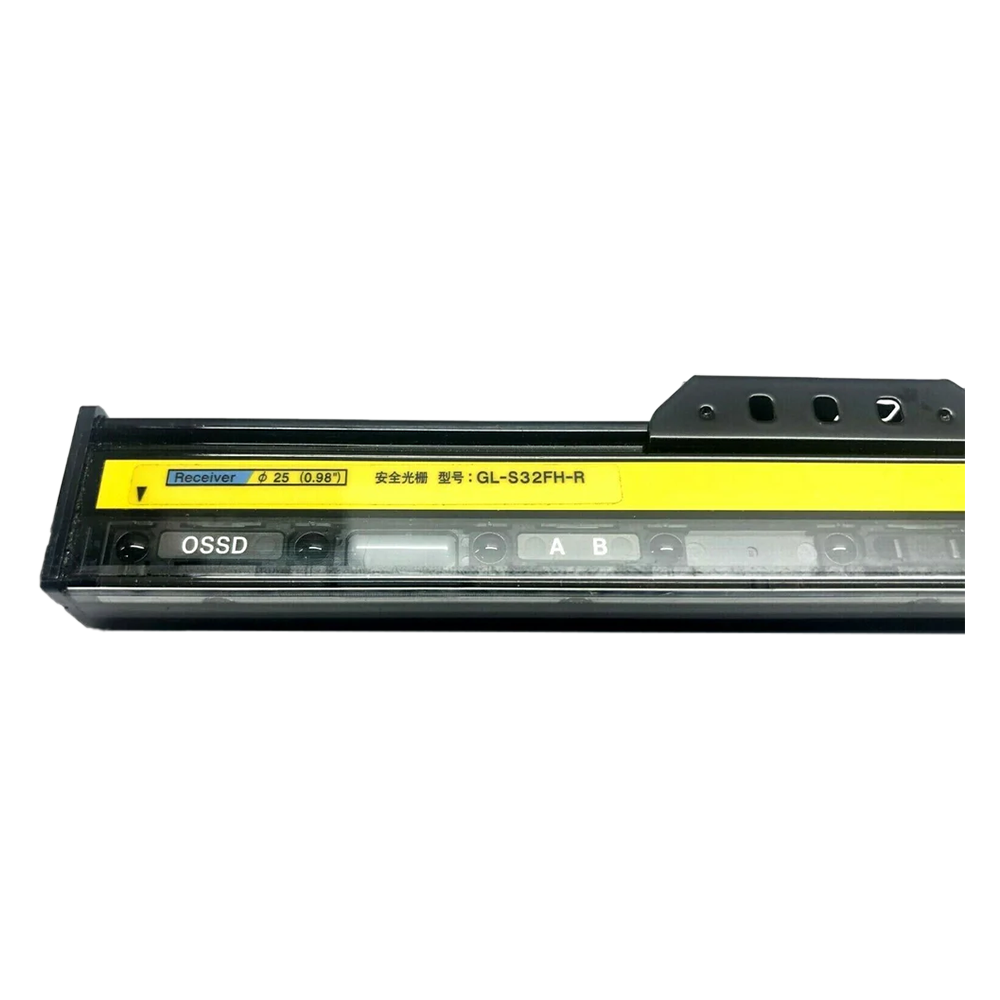

model: GL-S32FH
Types of: Flat
Detection accuracy (minimum detection object): diameter 25 mm
Optical axis distance: 20 mm
Detection distance: 0.1 to 2 m
Effective opening angle: +/- 3.75 degree (2 m)
light source: Infrared LED (870 nm)
Response time (OSSD) (ms):
When wired synchronization / single line / optical synchronization (channel 0):
ON OFF: 7.9 * 1
OFF ON: 50.6 * 2
Asynchronous ON: 68.3 * 3
Light sync (channel A or B): ON OFF: 10.2 * 1
For light synchronization (channel A / B):
ON OFF：10.9 * 1
OFF ON: 55.1 * 2
Asynchronous ON: 80.2 * 3
Detection method: On when there is no interference in the protective field
Synchronously: Optical synchronization / Wired synchronization (can be selected according to wiring)
Prevent mutual interference function:
Light synchronization: interference prevention for up to 2 devices with the setting of a button
Wired sync: Automatic interference prevention for up to 2 devices
Control output (OSSD output):
Output type: Transistor output × 2 (PNP / NPN can be switched according to the cable)
Load current: 300 mA or less * 4
Residual voltage (when open): 2.5V (at 5 m cable)
Voltage when closed: 2.0V (at 5 m cable)
Leakage current: 200 ?A max
Maximum load capacity：2.2 ?F
Load connection resistance：2.5 ohm max
Enter 1/2: Short-circuit current: approx. 1 mA
power supply:
voltage: 24 VDC +/- 20% pulse (P-P) 10% or less Class 2
Consumption current (mA):When the center display light is on:
launcher: 45 * 4
receiver: 70 * 4
When the center indicator is off:
launcher: 29 * 4
receiver: 53 * 4
protect the circuit: Reverse power protection, output short circuit protection, output surge protection
Meet specifications：
EMC：
EMS：
IEC61496-1, EN61496-1, UL61496-1
EMI：EN55011 ClassA、FCC Part15B ClassA、ICES-003 ClassA
Safety：
IEC61496-1、EN61496-1、UL61496-1(Type 4 ESPE)
IEC61496-2、EN61496-2、UL61496-2(Type 4 AOPD)
IEC61508、EN61508 (SIL3)、IEC62061、EN62061(SIL CL3)
EN ISO13849-1: 2015(Category 4， PLe)
UL508、UL1998
GB4584
Environmental resistance：
Enclosure protection level：IP65 / IP67 (IEC60529)
Overvoltage category：II
Ambient light：Incandescent lamp: 3,000 lux or less, Sunlight: 20,000 lux or less
Use ambient temperature：-10 to +55 degree C (no freezing)
Ambient storage temperature：-25 to +60 degree C (no freezing)
Use of ambient humidity：15 to 85% RH (non-condensing)
Storage environment humidity：15 to 95% RH
Earthquake resistance：10 to 55 Hz, double amplitude 0.7 mm, 20 sweeps each in X, Y, and Z directions
Impact resistance：100 m / s2 (about 10 G), 16 ms pulse, 1,000 times each in X, Y, and Z directions
Material：
Main module housing：Polyarylate
weight：585 g
* 1 When the response time (ON OFF) exceeds 20 ms, it cannot be used as a model certification inspection product that complies with the Chinese standard GB4584 "Technical Conditions for Photoelectric Protection Devices for Presses". The response time for a serial connection is the total value of the individual response times of all connected GL-Ss minus the following value.
(ON OFF)
When 1 submodule is connected: 2 ms
When 2 submodules are connected: 4.2 ms
(When set to channel A or B in the optical synchronization system)
When 1 submodule is connected: 2.7 ms
When 2 submodules are connected: 5.7 ms
(OFF ON)
When 1 submodule is connected: 42 ms
When 2 submodules are connected: 84 ms
* 2 When the response time (ON OFF) exceeds 20 ms, it cannot be used as a type certification inspection product that complies with the Chinese standard GB4584 "Technical Conditions for Photoelectric Protection Devices for Presses". The response time for a serial connection is the total value of the individual response times of all connected GL-Ss minus the following value.
(ON OFF)
When 1 submodule is connected: 2 ms
When 2 submodules are connected: 4.2 ms
(When set to channel A or B in the optical synchronization system)
When 1 submodule is connected: 2.7 ms
When 2 submodules are connected: 5.7 ms
(OFF ON)
When 1 submodule is connected: 42 ms
When two sub-modules are connected: 84 ms When the light-shielding time is less than 80 ms, in order to ensure that the OFF state of the OSSD can last more than 80 ms, the response time (OFF ON) is slowed down to at least 80 ms.
* 3 When the response time (ON OFF) exceeds 20 ms, it cannot be used as a type certification inspection product that complies with the Chinese standard GB4584 "Technical Conditions for Photoelectric Protection Devices for Presses". The response time for a serial connection is the total value of the individual response times of all connected GL-Ss minus the following value.
(ON OFF)
When 1 submodule is connected: 2 ms
When 2 submodules are connected: 4.2 ms
(When set to channel A or B in the optical synchronization system)
When 1 submodule is connected: 2.7 ms
When 2 submodules are connected: 5.7 ms
(OFF ON)
When 1 submodule is connected: 42 ms
When 2 sub-modules are connected: 84 ms "Asynchronous ON" means when the transmitter and receiver are not synchronized (both the top and bottom optical axes are blocked) when used in optical synchronization Time spent. Because after the synchronization of the transmitter and receiver is established, the light is entered.
And the judgment of shading, the response time will increase.
* 4 Excluding current for control output (OSSD). When each input is on, the average current consumption per input increases by 1 mA.
