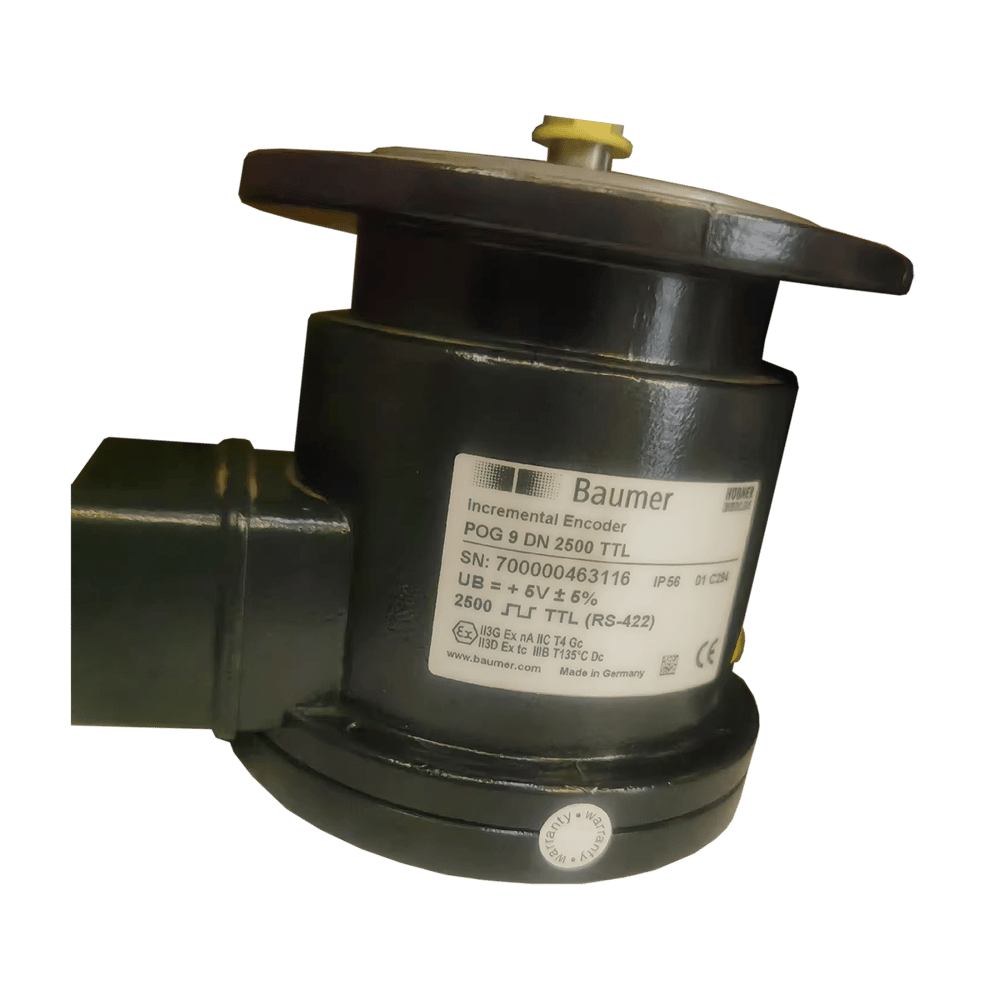

Baumer Encoder POG 9 DN 2500 TTL
$ 1,071 .43
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 1
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
Technical data - electrical ratings
Voltage supply
9...30 VDC
5 VDC ±5 %
Consumption w/o load
≤100 mA
Pulses per revolution
300 … 5000
Phase shift
90 ° ±20°
Duty cycle
40…60 %
Reference signal
Zero pulse, width 90°
Sensing method
Optical
Output frequency
≤120 kHz
≤300 kHz (on request)
Output signals
K1, K2, K0 + inverted
Error output (option EMS)
Output stages
HTL-P (power linedriver)
TTL/RS422
Interference immunity
EN 61000-6-2
Emitted interference
EN 61000-6-3
Approval
CE
UL approval / E217823
Technical data - mechanical design
Size (flange)
ø115 mm
Shaft type
ø11 mm solid shaft
Admitted shaft load
≤250 N axial
≤350 N radial
Flange
EURO flange B10
Protection EN 60529
IP 56
Operating speed
≤12000 rpm (mechanical)
Operating torque typ.
2 Ncm
Rotor moment of inertia
200 gcm²
Material
Housing: aluminium die-cast
Shaft: stainless steel
Operating temperature
-30...+100 °C
-25...+100 °C (>3072 pulses)
Resistance
IEC 60068-2-6
Vibration 10 g, 10-2000 Hz
IEC 60068-2-27
Shock 300 g, 1 ms
Corrosion protection
IEC 60068-2-52 Salt mist
for ambient conditions C4 according to ISO 12944-2
Explosion protection
II 3 G Ex ec IIC T4 Gc (gas)
II 3 D Ex tc IIIB T135°C Dc (dust)
(only with option ATEX)
Connection
Terminal box
Weight approx.
1.4 kg
Ask questions
(0/1,200)
- Q: Is my personal information secure when shopping on your platform?
A: Absolutely! We take the security and privacy of your personal information seriously. Our platform utilizes advanced encryption and security measures to protect your data, ensuring a safe and secure shopping experience.
- Q: How can I check the status of my refund?
A: To check the status of your refund, you can contact our customer service team and provide them with the necessary details, such as your order number and refund request. They will assist you in tracking the progress of your refund.
- Q: Can I buy products as a guest or do I need to create an account?
A: We support guest checkout. There are three steps for you to buy products as a guest. First, you should place an order. Then, you can proceed to the checkout process. Last, you should make a payment. If you only purchase as a guest without creating an account, you’ll miss out on the benefits of being a member.
Question has been sent successfully
Reviews
- A
Anonymous user
Nov 25, 2022
Baumer Encoder POG 9 DN 2500 TTLAll was ok! No problems whatsoever.HelpfulUnhelpful
