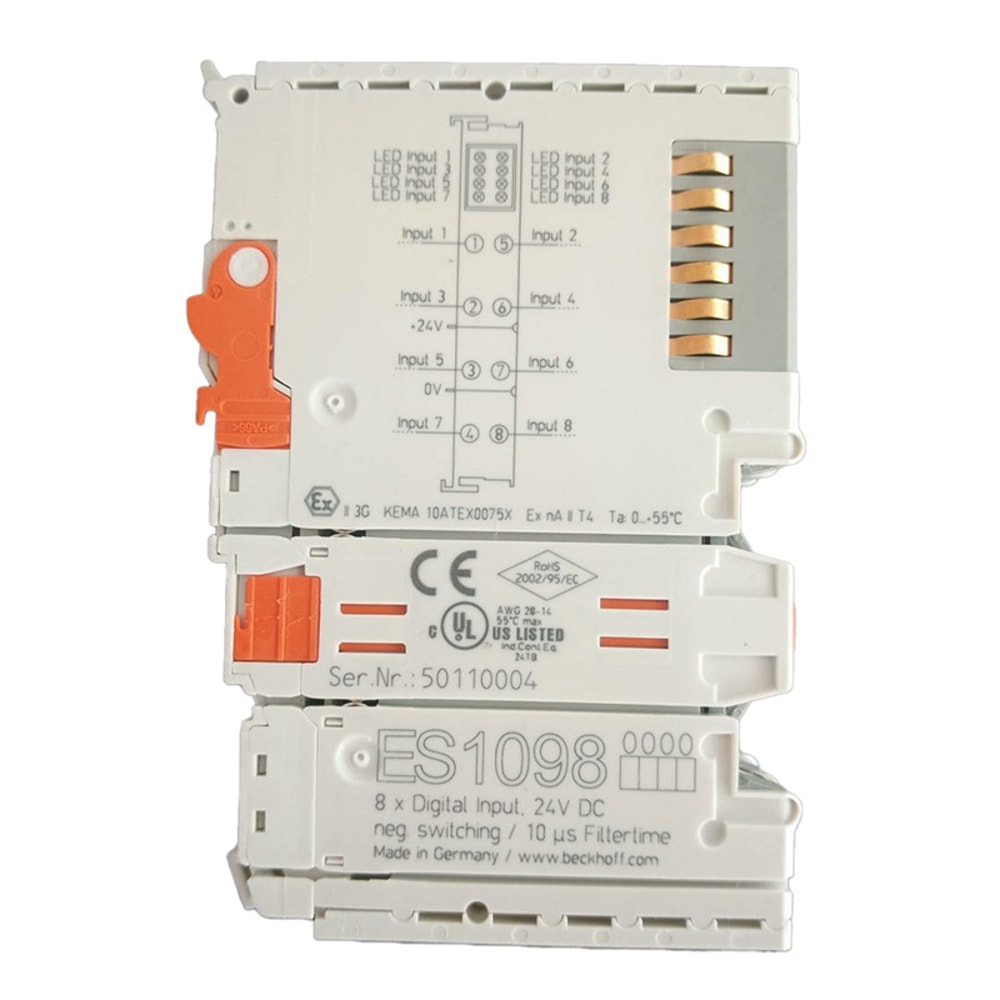

Beckhoff Module Ethercat Terminals Digital Input ES1098

There is no price at present, you can Request a Quote

Parameter

                                               Product series
                                                 EtherCAT Terminals

                                               Type/signal
                                                 Digital input

                                               Channels
                                                 8

                                               Value range (digital/encoder)
                                                 24 V

                                               Filter (digital)
                                                 10 µs typ.

                                               Input/output specification (digital)
                                                 ground switching

                                               Connection technology
                                                 1-wire

                                               Weight
                                                 approx. 50 g

                                               Operating/storage temperature
                                                 0…+55 °C/-25…+85 °C

                                               Relative humidity
                                                 95 %, no condensation

                                               Vibration/shock resistance
                                                 conforms to EN 60068-2-6/EN 60068-2-27

                                               EMC immunity/emission
                                                 conforms to EN 61000-6-2/EN 61000-6-4

                                               Protect. rating/installation pos.
                                                 IP20/see documentation

                                               Approvals/markings
                                                 CE, UL, ATEX, DNV GL

                                               Ex marking
                                                 II 3 G Ex nA IIC T4 Gc
