Cushioning angle: 16 deg
Adjustment range of swivel angle: 0 deg - 240 deg
Swivel angle: 0 deg - 240 deg
Type code: DSM
Cushioning: Pneumatic shock absorber at both ends
Mounting position: Any
Precision adjustment: -3 deg
Mode of operation: Double-acting
Design: Rotary vane
Position sensing: For proximity sensor
Symbol: 00991265
Operating pressure: 1.5 bar - 10 bar
Max. swivel frequency at 6 bar: 0.7 Hz
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 0 - No corrosion stress
Ambient temperature: -10 to 60 Celsius Degree
Max. axial force: 120 N
Max. radial force: 350 N
Theoretical torque at 6 bar: 20 Nm
Permissible mass moment of inertia: 0.11 kgm?
Product weight: 2800 g
Type of mounting: With internal thread
Pneumatic connection: G1/8
Note on materials: RoHS-compliant: Free of copper and PTFE
Drive shaft material: Steel: Nickel-plated
Seals material: TPE-U(PU)
Housing material: Wrought aluminum alloy

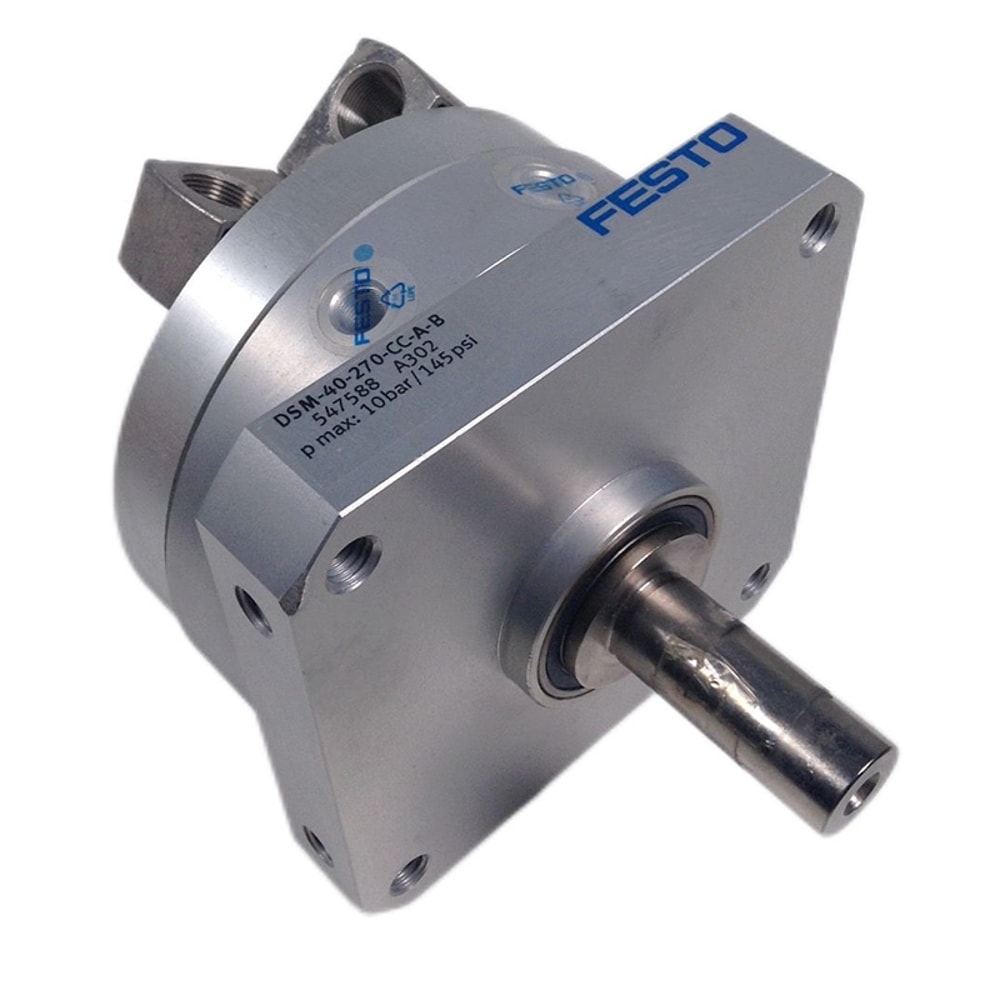

Festo Air Cylinder DSM-40-270-CC-A-B
