14 moving pictures show various air-conditioning compressors, hurry up and collect them
The compressor is the low pressure gas
A driven fluid machine that is upgraded to high-pressure gas. It is the heart of the refrigeration system and provides power for refrigeration.
Double worm compressor

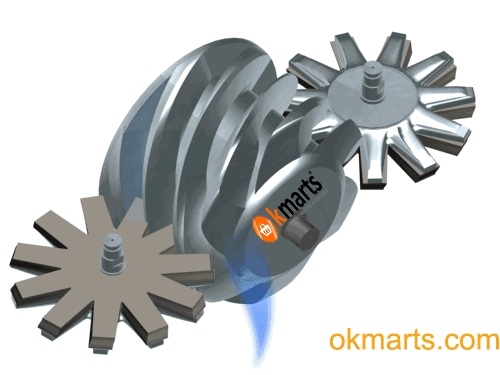

Single worm compressor
Car compressor
No matter what type of compressor, the principle is to compress the sucked low-pressure air (some medium) into high-pressure air (medium)
Compressors can be divided into positive displacement compressors and speed compressors according to their principles.
Positive displacement compressors are divided into reciprocating compressors and rotary compressors.
Generally, the piston air compressors we use are reciprocating compressors. Household air conditioners generally use rotary compressors.
Speed compressors are divided into axial compressors, centrifugal compressors and mixed-flow compressors.
1.Dynamic schematic diagram of piston compressor
2.Schematic diagram of single screw compressor
3.Schematic diagram of double screw compressor
4.Schematic diagram of scroll compressor
5.Schematic diagram of rotary compressor
6.Open piston refrigeration compressor
Compressors are widely used in daily production and life, ranging from car air conditioners and household air conditioners to factory machinery and medical equipment, etc.
