Maintaining a lush, green lawn requires a properly functioning sprinkler system, and at the heart of this system are the valves. The solenoid valve, in particular, plays a crucial role in controlling the flow of water to different zones of your lawn. However, like any mechanical component, solenoid valves can wear out over time, leading to inefficiencies or complete failure. In this comprehensive guide, we'll explore the signs that indicate a bad sprinkler valve solenoid and how to determine if a sprinkler valve solenoid is bad, helping you diagnose and rectify issues before they escalate.
1. Signs of a Bad Sprinkler Valve Solenoid
1.1 Failure to Activate
One of the most obvious signs of a faulty solenoid is the failure of the associated sprinkler zone to activate. If you notice that a specific zone in your lawn isn't receiving water despite the controller signaling its activation, the solenoid could be to blame. This could indicate a lack of electrical current reaching the solenoid or internal damage preventing it from opening the valve.
1.2 Weak or Intermittent Water Flow
Another indicator of a problematic solenoid is weak or intermittent water flow from the affected sprinkler heads. If you observe reduced water pressure or irregular spraying patterns in a particular zone, it's worth inspecting the solenoid for potential issues. A partially clogged or malfunctioning solenoid may restrict the flow of water, leading to insufficient irrigation coverage.
1.3 Audible Clicking or Buzzing Sounds
Healthy solenoids operate quietly, with minimal noise during their activation process. However, a bad solenoid may produce audible clicking, buzzing, or humming sounds when attempting to open or close the valve. These noises could stem from damaged internal components or improper electrical connections, indicating the need for inspection and possible replacement.
1.4 Visible Leaks or Moisture
A leaking sprinkler valve solenoid can result in visible moisture around the valve box or adjacent areas. Inspect the surrounding soil for signs of dampness or pooling water, as this could indicate a compromised seal or cracked housing. Addressing leaks promptly is essential to prevent water waste and potential damage to your lawn or landscaping.
1.5 Electrical Issues
Since solenoid valves rely on electrical currents to function, any issues with the electrical supply can affect their performance. If you suspect a faulty solenoid, verify the continuity of electrical connections using a multimeter. Ensure that the wires leading to the solenoid are securely connected and free from damage or corrosion. Additionally, check the controller for any error codes or indicators that may point to an electrical malfunction.
1.6 Excessive Heat or Burn Marks
During operation, solenoid valves generate some heat due to electrical resistance. However, if you notice excessive heat emanating from the solenoid or detect burn marks on its surface, it could indicate an underlying problem. Overheating may result from excessive electrical current or internal short circuits, necessitating immediate attention to prevent further damage or safety hazards.
1.7 Age and Wear
Like all mechanical components, sprinkler valve solenoids have a finite lifespan and may deteriorate over time. If your sprinkler system is older or has been in continuous use for many years, the likelihood of solenoid failure increases. Regular maintenance and periodic inspection can help identify signs of wear and proactively replace components before they fail.
2. Methods to Tell If a Sprinkler Valve Solenoid Is Bad
To tell if a sprinkler valve solenoid is damaged, you can follow these steps:
2.1 Observe the Appearance
First, we can carefully observe the appearance of the solenoid to determine whether it is broken. Check whether the solenoid valve has obvious physical damage, such as deformation, cracks, wear, burn marks, etc. A normal solenoid usually presents a neat, undamaged appearance, without obvious shedding, corrosion or wear. Through the appearance inspection method, we can preliminarily judge the condition of the solenoid.
If the appearance of the solenoid has obvious physical damage, such as deformation, cracks, etc., it may need to be replaced.
2.2 Check the Power Supply
Make sure that the solenoid valve is properly connected to the power supply. If the power connection is normal but the solenoid valve still does not work, it may be a power supply problem or the voltage of the solenoid valve does not match. If the power supply of the solenoid valve is normal, but the valve does not respond, it may be that the electrical components inside the solenoid valve are damaged. At this time, it is necessary to further check whether the solenoid is working properly.
2.3 Measure Solenoid Resistance

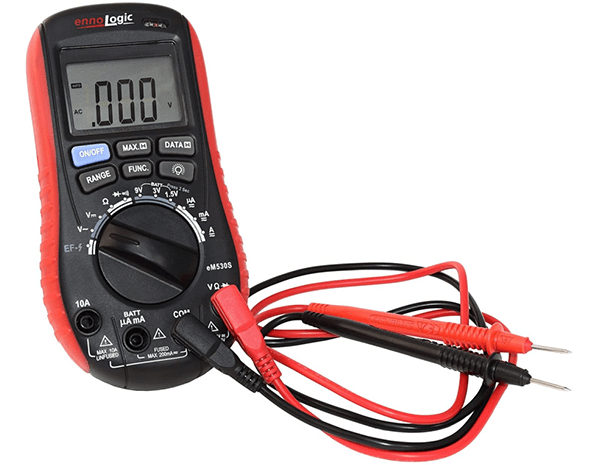

Determine whether the solenoid is broken by measuring the resistance of it. Use a multimeter or resistance meter to measure the resistance value between the two terminals of the solenoid. If the resistance value is close to the expected range, the solenoid is normal; if the resistance value is much higher or much lower than the expected range, the solenoid may be broken.
However, it should be noted that the theoretical range of resistance value is determined according to the specific model of the solenoid valve solenoid, so it is necessary to refer to relevant technical information when measuring.
2.4 Test Function
Power on the solenoid valve and observe whether the valve works as expected. If the valve cannot open or close normally, or the open/closed degree is not sufficient, the solenoid may be damaged.
2.5 Test the Response Time of the Solenoid Valve
According to the requirements in the product manual, apply a voltage signal to the solenoid valve and observe its opening and closing time. If the response time is significantly longer or the required opening and closing speed cannot be achieved, it may indicate a problem with the solenoid.
3. Conclusion
A properly functioning sprinkler system is essential for maintaining a healthy and vibrant lawn. By familiarizing yourself with the signs of a bad sprinkler valve solenoid, you can effectively diagnose and address issues to ensure optimal irrigation performance. Whether it's lack of activation, weak water flow, unusual noises, visible leaks, electrical issues, excessive heat, or simply age-related wear, addressing solenoid problems promptly can help prolong the lifespan of your sprinkler system and preserve the beauty of your landscape. Remember, when in doubt, consult a professional irrigation technician for expert diagnosis and repair.
