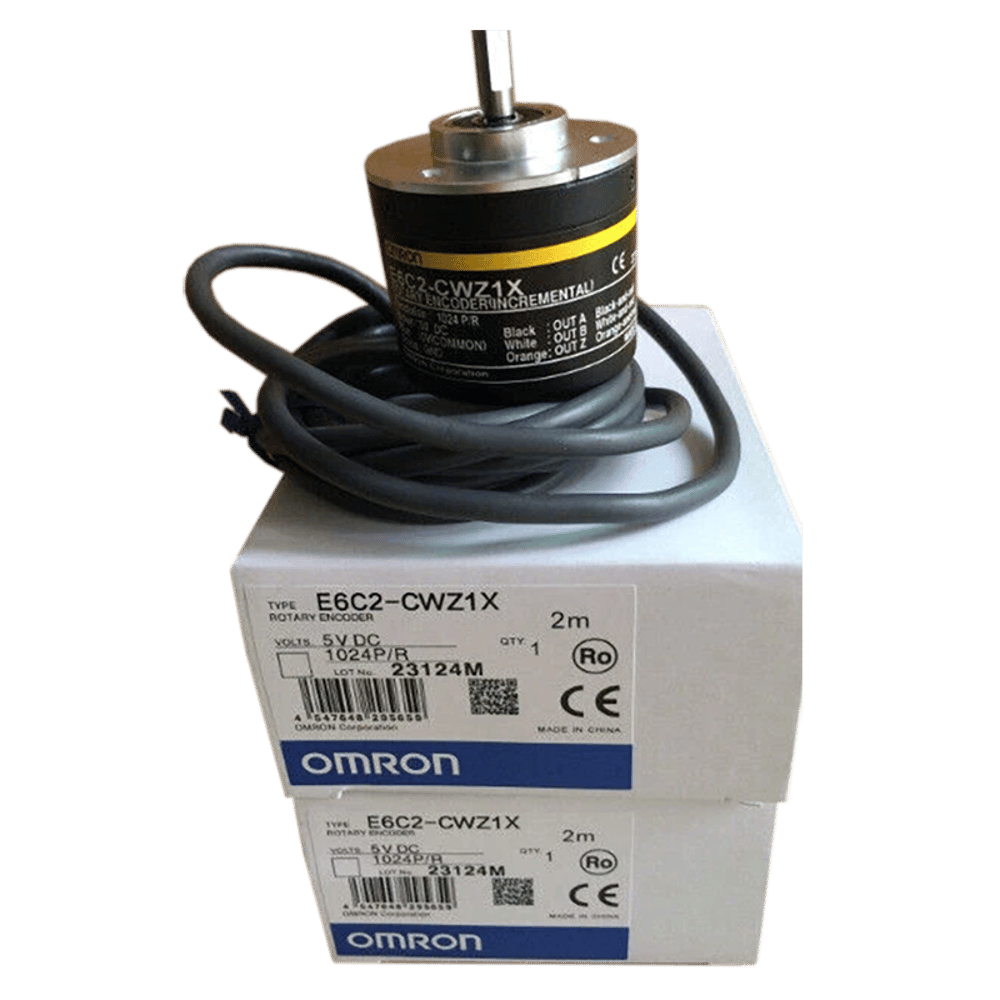

Omron Slim Incremental Rotary Encoder E6C2-CWZ1X 1024P/R 2M
There is no price at present, you can Request a Quote
E6C2CWZ1X1024PR2M
Resolution 1024 P/R
Output phases A, -A, B, -B, Z and -Z
Control output Line driver output
Connection method Pre-wired models (Cable length: 2 m)
Power supply voltage 5 VDC, plus or minus 5% , ripple (p-p) 5% max.
Current consumption 160 mA max.
Output voltage Vo: 2.5 V min.
Vs: 0.5 V max
Load current High level (Io): -20 mA
Low level (Is): 20 mA
Starting positional point Supported
Max. response frequency 100 kHz
Max. permissible rotation 6000 r/min
Resolution 1024 P/R
Output phases A, -A, B, -B, Z and -Z
Control output Line driver output
Connection method Pre-wired models (Cable length: 2 m)
Power supply voltage 5 VDC, plus or minus 5% , ripple (p-p) 5% max.
Current consumption 160 mA max.
Output voltage Vo: 2.5 V min.
Vs: 0.5 V max
Load current High level (Io): -20 mA
Low level (Is): 20 mA
Starting positional point Supported
Max. response frequency 100 kHz
Max. permissible rotation 6000 r/min
