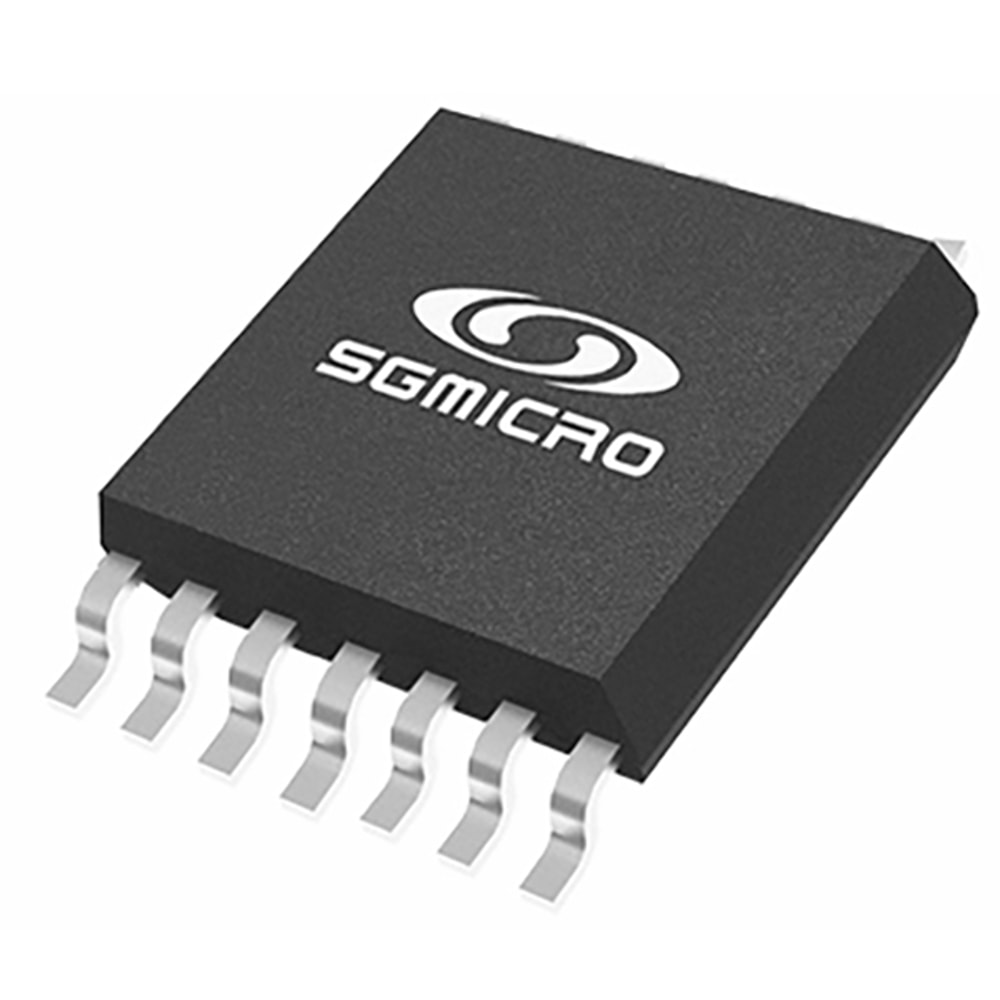

SGMICRO IC Integrated Circuit Chip SGM8249-4XS14G/TR
$ 5 .74
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 55
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
The SGMICRO IC is high quality!
Low Offset Voltage: 2μV (TYP), 12μV (MAX)
Open-Loop Voltage Gain: 150dB (TYP)
PSRR: 150dB (TYP)
CMRR: 140dB (TYP)
Input Voltage Noise Density: 12nV/√Hz at 1kHz
Gain-Bandwidth Product: 8MHz
Overload Recovery Time: 0.7μs
Rail-to-Rail Output Swing
Support Single or Dual Power Supplies: 4.5V to 36V or ±2.25V to ±18V
Low Supply Current: 3.2mA (TYP)
-40℃ to +125℃ Operating Temperature Range
Available in Green SOIC-14 and TSSOP-14 Packages
Supply Voltage.................................................................40V
Input Voltage Range ................................ -VS to (+VS) + 0.1V
Differential Input Voltage Range ............................. -1V to 1V
Junction Temperature .................................................+150℃
Storage Temperature Range.........................-65℃ to +150℃
Lead Temperature (Soldering, 10s) ............................+260℃
ESD Susceptibility
HBM.............................................................................6000V
MM.................................................................................300V
CDM ............................................................................1000V
RECOMMENDED OPERATING CONDITIONS
Operating Voltage Range.....................................4.5V to 36V
Operating Temperature Range .....................-40℃ to +125℃
Open-Loop Voltage Gain: 150dB (TYP)
PSRR: 150dB (TYP)
CMRR: 140dB (TYP)
Input Voltage Noise Density: 12nV/√Hz at 1kHz
Gain-Bandwidth Product: 8MHz
Overload Recovery Time: 0.7μs
Rail-to-Rail Output Swing
Support Single or Dual Power Supplies: 4.5V to 36V or ±2.25V to ±18V
Low Supply Current: 3.2mA (TYP)
-40℃ to +125℃ Operating Temperature Range
Available in Green SOIC-14 and TSSOP-14 Packages
Supply Voltage.................................................................40V
Input Voltage Range ................................ -VS to (+VS) + 0.1V
Differential Input Voltage Range ............................. -1V to 1V
Junction Temperature .................................................+150℃
Storage Temperature Range.........................-65℃ to +150℃
Lead Temperature (Soldering, 10s) ............................+260℃
ESD Susceptibility
HBM.............................................................................6000V
MM.................................................................................300V
CDM ............................................................................1000V
RECOMMENDED OPERATING CONDITIONS
Operating Voltage Range.....................................4.5V to 36V
Operating Temperature Range .....................-40℃ to +125℃
