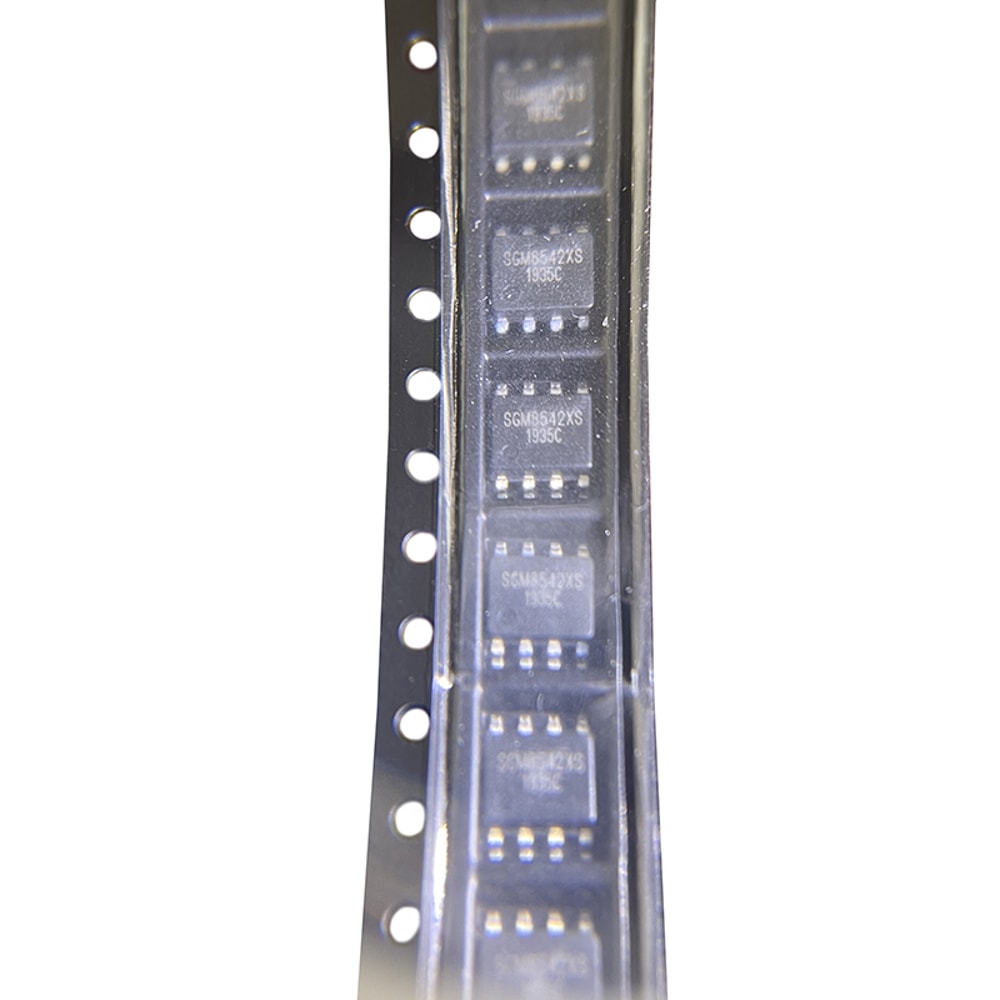

SGMICRO IC Integrated Circuit Chip SGM8542XS/TR
$ 0 .58
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 538
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
The SGMICRO IC is high quality!
Supply Voltage, +VS to -VS ................................................6V
Input Common Mode Voltage Range
.................................................... (-VS) - 0.3V to (+VS) + 0.3V
Package Thermal Resistance @ TA = +25℃
SC70-5, θJA.............................................................. 333℃/W
SOT-23-5, θJA .......................................................... 190℃/W
SOIC-8, θJA .............................................................. 125℃/W
MSOP-8, θJA ............................................................ 216℃/W
TSSOP-8, θJA .........................................................................................175℃/W
Junction Temperature.................................................+150℃
Storage Temperature Range .......................-65℃ to +150℃
Lead Temperature (Soldering, 10s)............................+260℃
ESD Susceptibility
HBM.............................................................................4000V
MM.................................................................................400V
Low Cost
Input Offset Voltage: 3.5mV (MAX)
Ultra-Low Input Bias Current: 0.5pA
Unity-Gain Stable
Gain-Bandwidth Product: 1.1MHz
Rail-to-Rail Input and Output
Supply Voltage Range: 2.1V to 5.5V
Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
Low Supply Current: 46μA/Amplifier
-40℃ to +125℃ Operating Temperature Range
Available in Green SOIC-8, MSOP-8 and TSSOP-8 Packages
Input Common Mode Voltage Range
.................................................... (-VS) - 0.3V to (+VS) + 0.3V
Package Thermal Resistance @ TA = +25℃
SC70-5, θJA.............................................................. 333℃/W
SOT-23-5, θJA .......................................................... 190℃/W
SOIC-8, θJA .............................................................. 125℃/W
MSOP-8, θJA ............................................................ 216℃/W
TSSOP-8, θJA .........................................................................................175℃/W
Junction Temperature.................................................+150℃
Storage Temperature Range .......................-65℃ to +150℃
Lead Temperature (Soldering, 10s)............................+260℃
ESD Susceptibility
HBM.............................................................................4000V
MM.................................................................................400V
Low Cost
Input Offset Voltage: 3.5mV (MAX)
Ultra-Low Input Bias Current: 0.5pA
Unity-Gain Stable
Gain-Bandwidth Product: 1.1MHz
Rail-to-Rail Input and Output
Supply Voltage Range: 2.1V to 5.5V
Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
Low Supply Current: 46μA/Amplifier
-40℃ to +125℃ Operating Temperature Range
Available in Green SOIC-8, MSOP-8 and TSSOP-8 Packages
