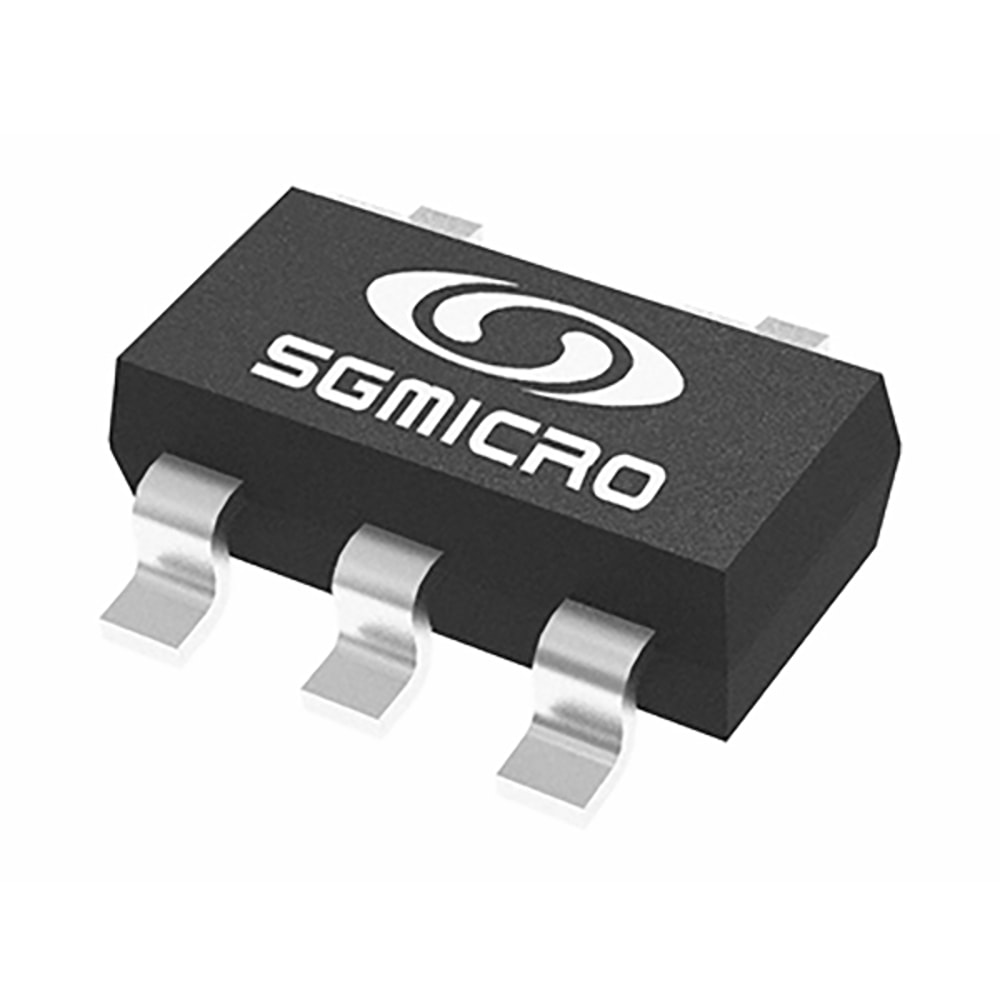

SGMICRO IC Integrated Circuit Chip SGM8746YC5G/TR
$ 2 .39
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 131
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
The SGMICRO IC is high quality!
High Speed: 155ns Propagation Delay (10mV Overdrive)
Low Supply Current: 22μA (TYP) at VS = 3V
Low Offset Voltage: 0.8mV (TYP)
Rail-to-Rail Input and Output
Supply Voltage Range: 2.7V to 5.5V
Optimized for 3V and 5V Applications
Output Swing to within 190mV from Rails with 4mA Output Current
Supports CMOS or TTL Logic
Internal Hysteresis for Reducing Comparator Sensitivity to Noise
-40℃ to +85℃ Operating Temperature Range
Available in Green SOT-23-5 and SC70-5 Packages
ABSOLUTE MAXIMUM RATINGS
Supply Voltage, +VS to -VS ................................................6V
VIN Differential...............................................................±2.5V
Voltage at Input/Output Pins....... (-VS) - 0.3V to (+VS) + 0.3V
Junction Temperature.................................................+150℃
Storage Temperature Range .......................-65℃ to +150℃
Lead Temperature (Soldering, 10s)............................+260℃
ESD Susceptibility
HBM.............................................................................6000V
MM.................................................................................400V
RECOMMENDED OPERATING CONDITIONS
Operating Temperature Range.......................-40℃ to +85℃
Low Supply Current: 22μA (TYP) at VS = 3V
Low Offset Voltage: 0.8mV (TYP)
Rail-to-Rail Input and Output
Supply Voltage Range: 2.7V to 5.5V
Optimized for 3V and 5V Applications
Output Swing to within 190mV from Rails with 4mA Output Current
Supports CMOS or TTL Logic
Internal Hysteresis for Reducing Comparator Sensitivity to Noise
-40℃ to +85℃ Operating Temperature Range
Available in Green SOT-23-5 and SC70-5 Packages
ABSOLUTE MAXIMUM RATINGS
Supply Voltage, +VS to -VS ................................................6V
VIN Differential...............................................................±2.5V
Voltage at Input/Output Pins....... (-VS) - 0.3V to (+VS) + 0.3V
Junction Temperature.................................................+150℃
Storage Temperature Range .......................-65℃ to +150℃
Lead Temperature (Soldering, 10s)............................+260℃
ESD Susceptibility
HBM.............................................................................6000V
MM.................................................................................400V
RECOMMENDED OPERATING CONDITIONS
Operating Temperature Range.......................-40℃ to +85℃
