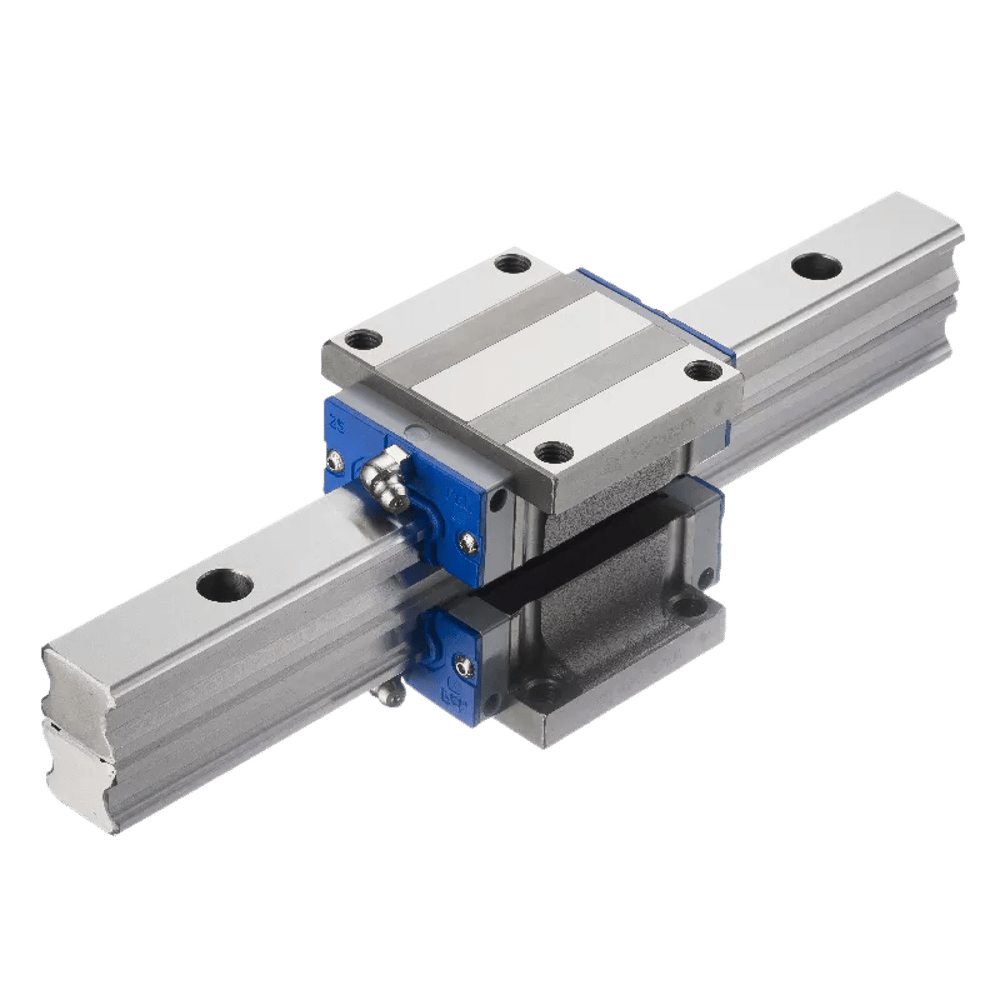

The STAF MPHX07SN is a micro linear guideway from the MPH series, constructed with high - quality, corrosion - resistant materials to ensure durability and reliable performance in various applications. In terms of physical dimensions, the assembly height (H) of the MPHX07SN is 8 mm, and the width (W) is 17 mm, presenting an extremely compact structure. This makes it an ideal choice for applications where space is severely limited, such as in miniaturized electronic devices or precision - instrument manufacturing. The slide has a width (B) of 12 mm and a length (L) of 24 mm. These precise dimensions are optimized to enable smooth and accurate linear movement. For mounting, it is equipped with an M2 mounting thread (MQ), which allows for a secure and straightforward attachment to other components. The relatively small - sized mounting thread is in line with its compact design. The oil - hole diameter (Oil - H) is Ø1.1 mm, which is designed to provide proper lubrication to the moving parts of the guideway. Adequate lubrication is crucial as it reduces friction between the components, minimizing wear and tear and thus extending the lifespan of the guideway. In summary, the STAF MPHX07SN linear guideway is a compact, reliable product suitable for precision - oriented applications where space is at a premium and light - duty linear motion is required.The STAF Linear Guideway is high quality!
