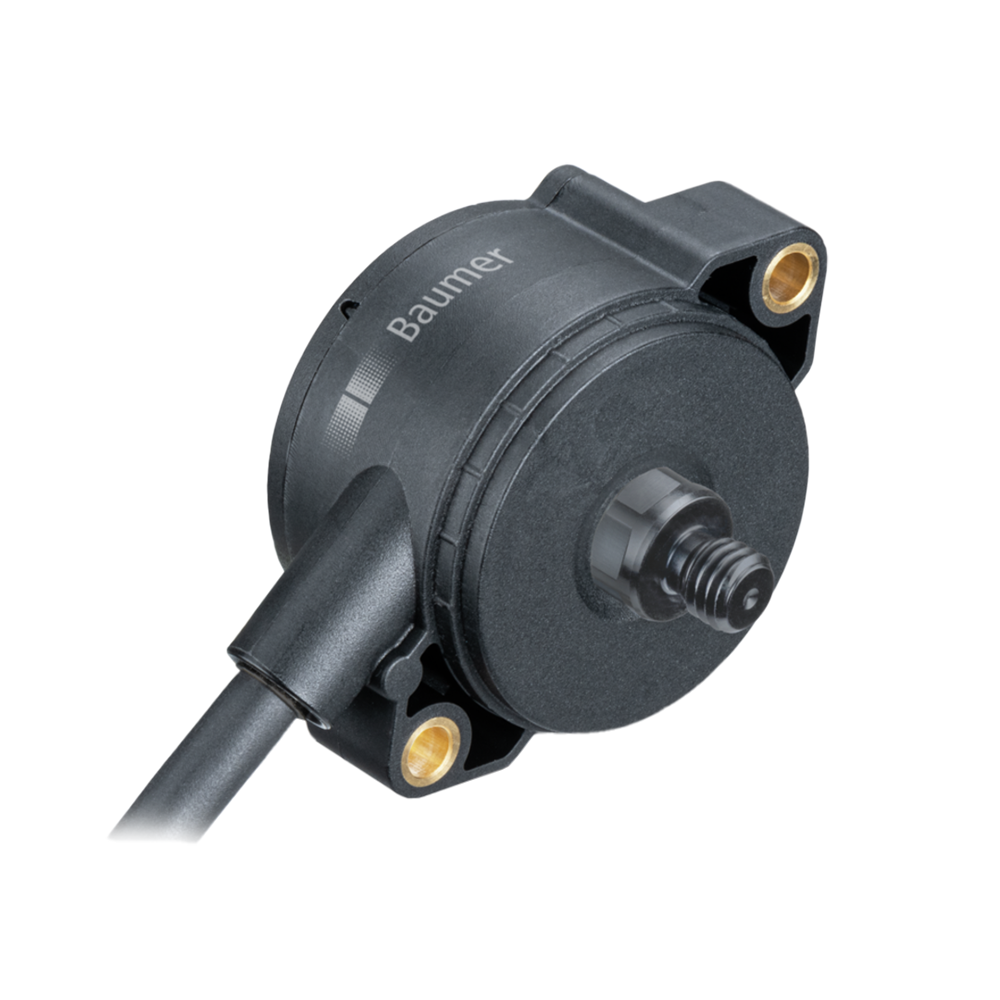

Baumer Encoder EB360.MC-C.TM8A.V4GC1.13120N
$ 1,071 .43
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 1
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
Technical data - electrical ratings
Voltage supply
4.5...30 VDC
Consumption typ.
60 mA (5 VDC, w/o load)
20 mA (24 VDC, w/o load)
Initializing time
≤ 170 ms after power on
Inputs
SSI clock: Linereceiver RS422
Zero setting input
Counting direction
Interface
SSI
Function
Multiturn
Steps per revolution
8192 / 13 bit
Number of revolutions
4096 / 12 bit
Output stages
SSI data: Linedriver RS422
Absolute accuracy
±0.3 ° (+20 ±15 °C)
±0.5 ° (-40...+85 °C)
Sensing method
Magnetic
Code
Gray
Code sequence
CW: ascending values with clockwise sense of rotation (looking at flange)
Interference immunity
EN 61000-6-2
Emitted interference
EN 61000-6-4
Approval
UL approval / E217823
CE
Technical data - mechanical design
Size (flange)
ø36 mm
Magnet rotor
M8 x 8 mm, threaded screw
Protection EN 60529
IP 67 (sensor housing)
Operating speed
≤6000 rpm
Working distance
0.9 ±0.8 mm (axial)
≤ 0.3 mm (radial)
Material
Housing: PA10T / GF30
Cable sheath: PUR
Magnet rotor: aluminium, anodised
Operating temperature
-40...+85 °C (see general information)
Relative humidity
95 %
Resistance
EN 60068-2-6
Vibration 30 g, 10-2000 Hz
EN 60068-2-27
Shock 500 g, 1 ms
Weight approx.
100 g
Connection
Cable, length 1 m, open cable end
