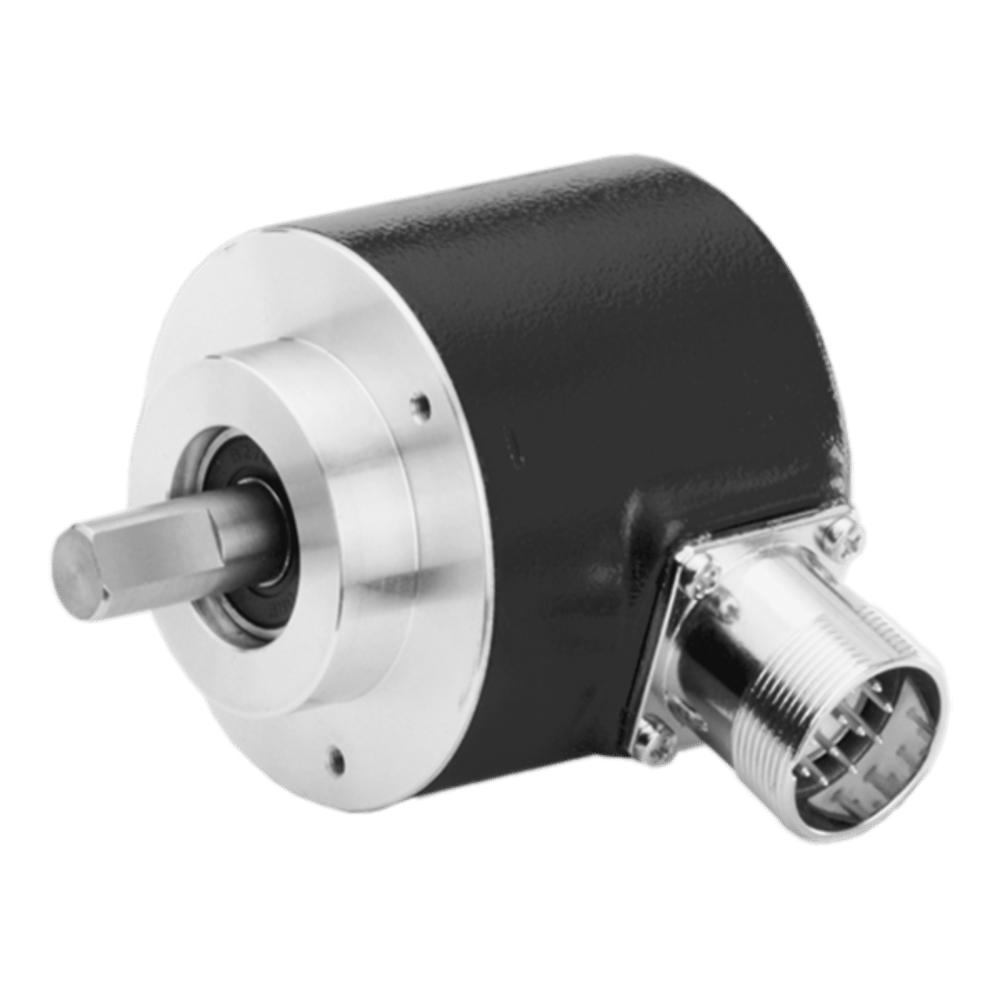

Baumer Encoder GA240U10V40200C
$ 1,071 .43
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 1
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
Technical data - electrical ratings
Voltage supply
10...30 VDC
Reverse polarity protection
Yes
Consumption w/o load
≤60 mA (24 VDC)
Initializing time typ.
20 ms after power on
Interface
13 parallel outputs
Function
Singleturn
Steps per revolution
8192 / 13 bit
Absolute accuracy
±0.025 °
Sensing method
Optical
Code
Gray or binary
Code sequence
CW/CCW coded by connection
Inputs
Control signals UP/DOWN inv. and zero
STORE inv.
ENABLE inv.
Output stages
Push-pull short-circuit proof
Interference immunity
EN 61000-6-2
Emitted interference
EN 61000-6-4
Diagnostic function
Self-diagnosis
Code continuity check
Approval
UL approval / E63076
Technical data - mechanical design
Size (flange)
ø58 mm
Shaft type
ø10 mm solid shaft
Flange
Clamping flange
Protection EN 60529
IP 54 (without shaft seal)
IP 65 (with shaft seal)
Operating speed
≤10000 rpm (mechanical)
≤6000 rpm (electric)
Starting torque
≤0.015 Nm (+25 °C, IP 54)
≤0.03 Nm (+25 °C, IP 65)
Rotor moment of inertia
14.5 gcm²
Admitted shaft load
≤20 N axial
≤40 N radial
Material
Housing: aluminium
Flange: aluminium
Operating temperature
-25...+85 °C
-40...+85 °C (optional)
Relative humidity
95 % non-condensing
Resistance
EN 60068-2-6
Vibration 10 g, 16-2000 Hz
EN 60068-2-27
Shock 200 g, 6 ms
Weight approx.
250 g
Connection
Connector M27, 21-pin
Cable 1 m
