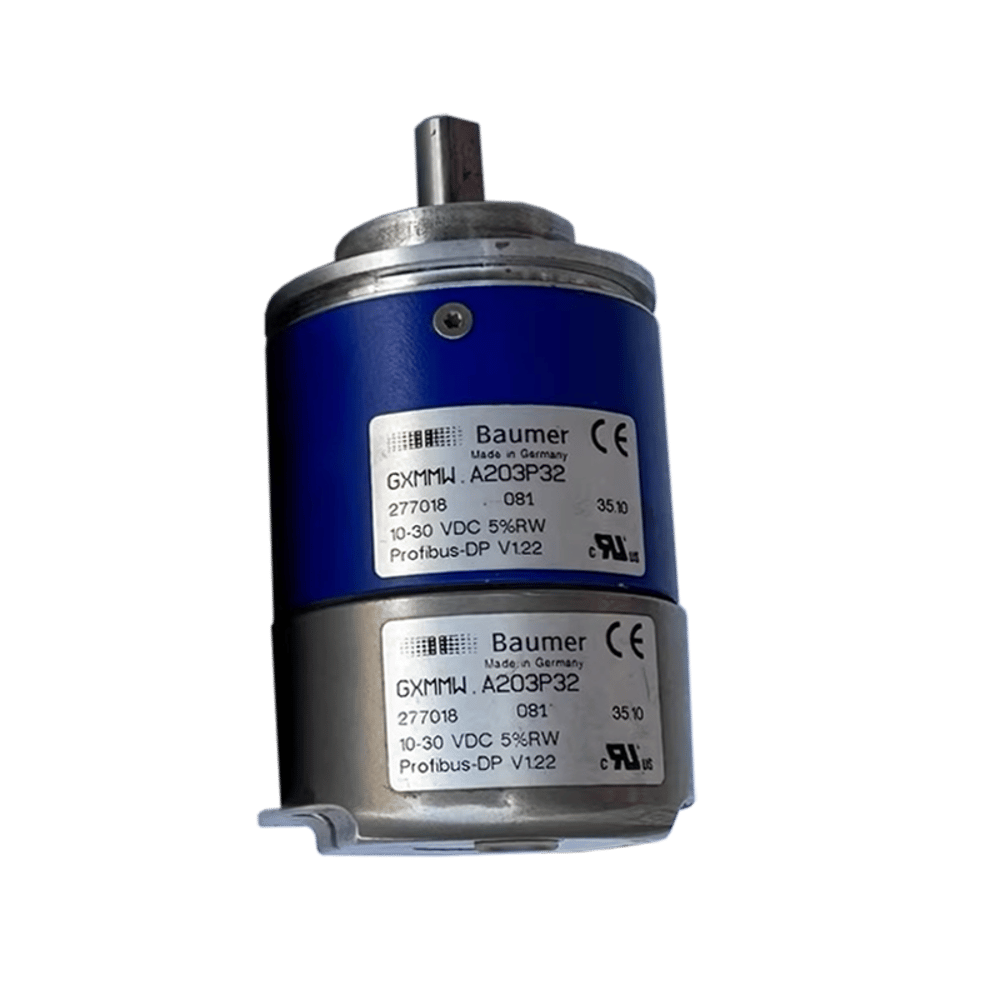

Baumer Encoder GXMMW.A203P22
$ 1,071 .43
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 1
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
Technical data - electrical ratings
Voltage supply
10...30 VDC
Reverse polarity protection
Yes
Consumption w/o load
≤100 mA (24 VDC)
Initializing time typ.
250 ms after power on
Interface
Profibus-DPV0/V2
Function
Multiturn
Device adress
Rotary switch in bus cover (type-specific)
Steps per revolution
≤8192 / 13 bit
Number of revolutions
≤65536 / 16 bit
Absolute accuracy
±0.025 °
Sensing method
Optical
Code
Binary
Code sequence
CW/CCW programmable
Incremental output
2048 pulses A90°B (optional)
Interference immunity
EN 61000-6-2
Emitted interference
EN 61000-6-4
Programmable parameters
Steps per revolution
Number of revolutions
Preset
Scaling
Rotating direction
Diagnostic function
Position or parameter error
Multiturn sensing
Status indicator
DUO-LED integrated in bus cover
Approval
UL approval / E63076
Technical data - mechanical design
Size (flange)
ø58 mm
Shaft type
ø10 mm solid shaft (clamping flange)
ø6 mm solid shaft (synchro flange)
Flange
Clamping or synchro flange
Protection EN 60529
IP 54 (without shaft seal)
IP 65 (with shaft seal)
Operating speed
≤10000 rpm (mechanical)
≤6000 rpm (electric)
Starting acceleration
≤1000 U/s²
Starting torque
≤0.015 Nm (+25 °C, IP 54)
≤0.03 Nm (+25 °C, IP 65)
Rotor moment of inertia
20 gcm²
Admitted shaft load
≤20 N axial
≤40 N radial
Material
Housing: steel
Flange: aluminium
Bus cover: zinc die-cast
Operating temperature
-25...+85 °C
-40...+85 °C (optional)
Relative humidity
95 % non-condensing
Resistance
EN 60068-2-6
Vibration 10 g, 16-2000 Hz
EN 60068-2-27
Shock 200 g, 6 ms
Weight approx.
650 g
Connection
Cable gland
Connector 3xM12
