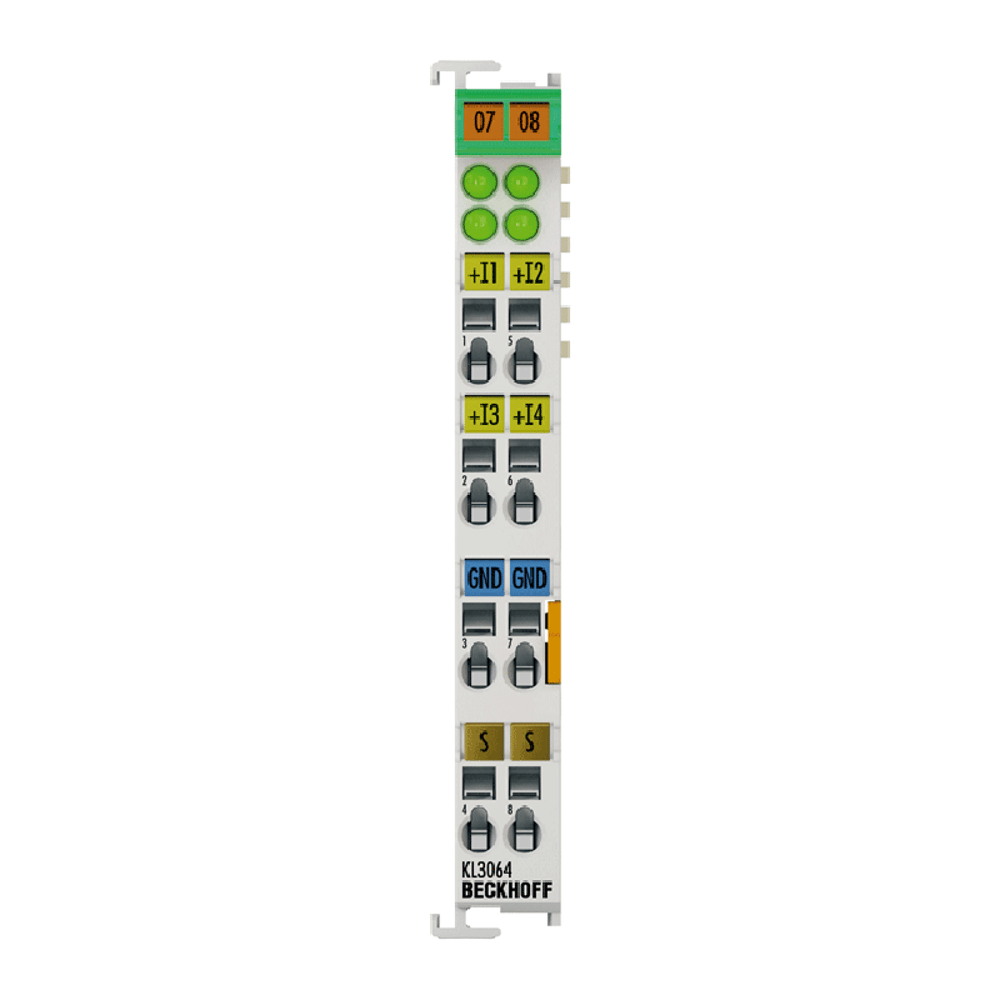

Beckhoff Module Bus Terminals Analog Input KL3064-0010

There is no price at present, you can Request a Quote

Parameter

                                               Category/version
                                                 analog input

                                               Type/signal
                                                 voltage

                                               Channels
                                                 4

                                               Value range (digital/encoder)
                                                 -

                                               Value range (analog)
                                                 0...10 V (standard signal)

                                               Output current
                                                 -

                                               Nominal voltage
                                                 -

                                               Communication
                                                 K-bus

                                               Technologies/ Highlights
                                                 extended temperature range -25°C...+60°C, extended shock and vibration range

                                               Approvals
                                                 Ship approvals, UL approvals, Explosion protection

                                               PLC integrated
                                                 -

                                               Input/output specification (digital)
                                                 -

                                               Filter (digital)
                                                 -

                                               Signal resolution (analog)
                                                 12 bit

                                               Measurement error/ uncertainty (analog)
                                                 > 0.1…0.5 %

                                               Sampling rate/ conversion time (analog)
                                                 > 0.1…1 ksps/< 10…1 ms

                                               Sampling type (analog)
                                                 multiplex

                                               Ground reference (analog/encoder)
                                                 single-ended

                                               Sensor supply (encoder)
                                                 -

                                               Incr. limit frequency (encoder)
                                                 -

                                               IO-Link Port Class
                                                 -

                                               Feedback (compact drive technology)
                                                 -

                                               Wiring
                                                 2-wire

                                               Connection method (signal)
                                                 spring-loaded technique, plug-in connection level

                                               Connection method (bus interface)
                                                 -

                                               Explosion protection
                                                 not intrinsically safe, ATEX Zone 2 (gas)

                                               Safety technology/ functions
                                                 -

                                               Safety Architecture
                                                 -

                                               Safety Integrity Level (SIL)
                                                 -

                                               Performance Level (PL)
                                                 -
