Piston diameter: 32 mm
Piston rod thread: M10x1.25
Type code: ADN
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Conforms to standard: ISO 21287
Piston rod end: External thread
Position sensing: For proximity sensor
Symbol: 00991217
Variants: Piston rod at one end
Operating pressure: 0.6 bar - 10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Impact energy in the end positions: 0.4 J
Theoretical force at 6 bar, retracting: 415 N
Theoretical force at 6 bar, advancing: 483 N
Moving mass at 0 mm stroke: 60 g
Additional weight per 10 mm stroke: 30 g
Basic weight with 0 mm stroke: 265 g
Additional moving mass per 10 mm stroke: 9 g
Type of mounting: With accessories: Optionally:: With internal thread: With through-hole
Pneumatic connection: G1/8
Note on materials: RoHS-compliant
Cover material: Aluminum: Anodized
Seals material: TPE-U(PUR)
Piston rod material: High-alloy steel
Material of cylinder barrel: Wrought aluminum alloy: Smooth anodized

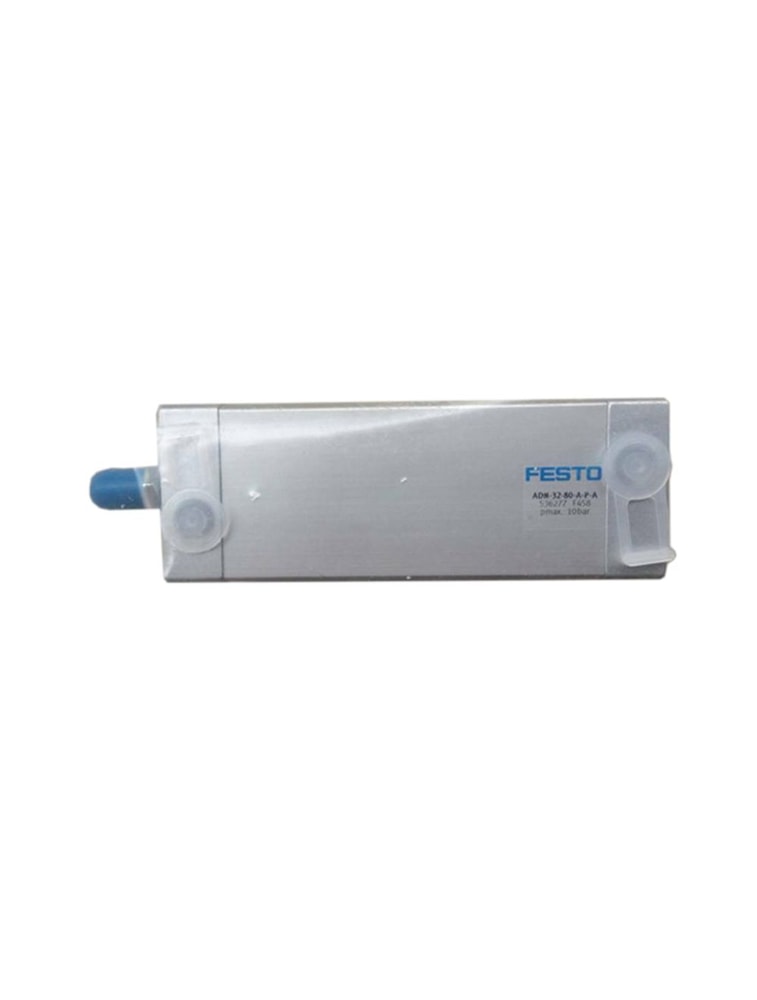

Festo Air Cylinder ADN-32-80-A-P-A
