How to Quiet a Loud Heat Pump: A Comprehensive Guide

Figure 1: Heat pump outdoor units.

Heat pumps are an efficient and effective way to heat and cool your home, but they can sometimes be loud and noisy. A noisy heat pump can be a nuisance, and in some cases, it can indicate a problem with the system.

In this article, we'll explore the reasons why your heat pump may be loud and what you can do to resolve the issue.

1. What is a Heat Pump?

A heat pump is a system that transfers heat from one place to another, typically from outside to inside a building. It works by circulating a refrigerant through a system of coils and compressors. The refrigerant absorbs heat from the outside air or ground and releases it inside the building to warm it up.

In summer, the process is reversed, and the heat pump extracts heat from inside the building and releases it outside to cool it down.

Figure 2: Heat pump structure and work principle diagram.

2. Why is My Heat Pump So Loud?

Under normal working conditions, the noise sources of the heat pump unit include the following aspects.
● Vibration noise of compressor;
● Flow noise of pipeline liquid;
● The noise generated by the operation of the water pump motor;
● Noise from the fan coils.

In addition, the following factors can cause the heat pump sound to become louder.

2.1 Airflow

Heat pumps require a significant amount of airflow to work correctly. If there is a blockage or restriction in the airflow, it can cause the heat pump to work harder and make more noise. This can be due to clogged filters, dirty coils, or a blocked outdoor unit.

2.2 Vibration

Heat pump compressors can vibrate when they're running, which can cause noise. The vibration can be caused by several factors, such as loose parts, worn or damaged motor bearings, unbalanced fan, or unbalanced compressor.

2.3 Refrigerant Flow

If there is a problem with the refrigerant flow, such as a blockage or a leak, the heat pump may make noise as it tries to circulate the refrigerant through the system.

2.4 Electrical Issues

Electrical problems, such as a faulty capacitor or a loose wire, can cause the heat pump to make noise. The noise may be a humming or buzzing sound, or it may be a clicking or popping noise.

2.5 Defrost Cycle

During the winter months, heat pumps may go into a defrost cycle to prevent ice buildup on the outdoor unit. This can cause a loud hissing or popping noise.

2.6 Age and Wear of Compressor (Heat Pump Compressor Noise)

Over time, heat pump compressors can wear out and become noisy. This is especially true for older heat pumps that have been in use for many years.

Figure 3: Copeland heat pump compressor.

3. How to Fix a Loud Heat Pump

If your heat pump is loud, there are several things you can do to resolve the issue. Here are some steps you can take:

3.1 Check the Airflow

Check the filters, coils, and outdoor unit for any blockages or restrictions. Clean or replace any dirty filters and remove any debris from the outdoor unit.

3.2 Replace Worn or Damaged Motor Bearings

If the motor bearings are worn or damaged, they may need to be replaced. This is a job best left to a professional HVAC technician.

3.3 Tighten Loose Parts

If the heat pump is vibrating, check for loose parts and tighten them. This can include screws, bolts, and brackets.

3.4 Balance the Fan or Compressor

If the fan or compressor is unbalanced, it may need to be rebalanced. This is also a job best left to a professional.

Figure 4: Heat pump components.

3.5 Check the Refrigerant Flow

If there is a problem with the refrigerant flow, such as a blockage or a leak, you'll need to have a professional HVAC technician diagnose and repair the issue.

3.6 Address Electrical Issues

If there's an electrical issue, such as a faulty capacitor or a loose wire, you'll need to have a professional HVAC technician diagnose and repair the issue.

3.7 Insulate the Ductwork

Insulating the ductwork can help reduce noise levels by absorbing sound waves. This is especially helpful if the ductwork is located in a living space.

3.8 Consider a Noise Barrier

You can also install a sound barrier around the heat pump to reduce noise levels. This can be in the form of a fence or wall built around the unit or a sound-dampening cover designed specifically for heat pumps.

Figure 5: Air-cooled heat pump unit noise reduction.

3.9 Consider Replacement

If your heat pump is old and the compressor is worn out, you may need to consider replacing the entire unit. A new heat pump will not only be quieter but will also be more energy-efficient, which can save you money on your energy bills in the long run.

4. Conclusion

A loud heat pump or a noisy heat pump compressor can be a nuisance, but it can also indicate a problem with the system. If your heat pump is making noise, there are several steps you can take to resolve the issue, such as checking the airflow, tightening loose parts, and addressing refrigerant flow or electrical issues.

If the heat pump is too old or too damaged, you may need to consider replacing the entire unit. By taking these steps, you can enjoy a quieter and more efficient heat pump system.

5. FAQs

5.1 Is a Heat Pump Supposed to be Loud?

Heat pumps typically generate some noise when they're operating, but they're not supposed to be excessively loud. The level of noise a heat pump makes can depend on several factors, including the age and condition of the unit, the location of the unit, and the type of heat pump.

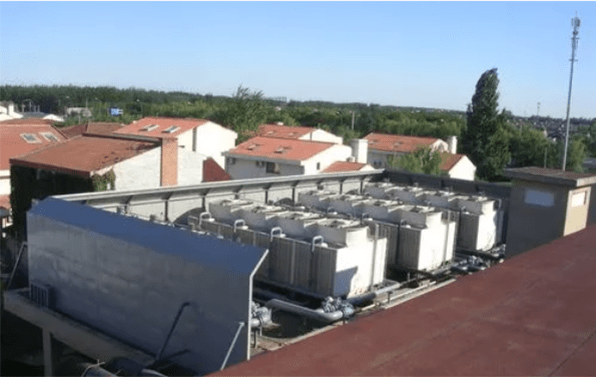

Figure 6: Soundproof panel for heat pump units.

5.2 Why is My Heat Pump So Loud in Winter?

Heat pumps can be louder in the winter because they may go into a defrost cycle to prevent ice buildup on the outdoor unit. During the defrost cycle, the heat pump temporarily switches to air conditioning mode to melt any ice that has accumulated on the outdoor unit. This can cause a loud hissing or popping noise as the refrigerant moves through the system and the ice melts.

Additionally, colder temperatures in the winter can make it harder for the heat pump to operate efficiently, which can cause it to work harder and generate more noise.
This can be due to several factors, such as clogged filters, dirty coils, or a blocked outdoor unit, which can restrict airflow and cause the heat pump to work harder than it needs to.

Furthermore, if there are any issues with the heat pump system, such as worn or damaged parts, the noise levels may increase in the winter as the system works harder to keep up with the heating demands of the home.
