Introduction of solenoid valve and troubleshooting method
1. Symptoms-the solenoid valve does not open
possible reason:
1 The coil has no voltage. 2 Incorrect voltage/frequency 3 Coil burned out 4 Pressure difference too high 5 Pressure difference too low 6 Damaged or bent armature tube 7 Impurities in the diaphragm/piston 8 Impurities in the valve seat 9 In the armature/armature tube Miscellaneous 10 Corrosion/cavitation 11 Missing parts after disassembling the solenoid valve
Troubleshooting:
1 Lift up the solenoid valve coil, do you feel resistance
2 Do not remove the coil from the valve if it is energized, otherwise the coil may be burnt.
3 Check the connection coil and wiring itself, check the relay contacts, wire connections, and fuses.
4 Compare the coil data with the installation data, and measure the working voltage of the coil. Allow 10% higher than rated voltage
5 Check the technical parameters and pressure difference of the solenoid valve. Replace the appropriate valve.
6 Check the diaphragm and/or piston ring.
7 Remove impurities, replace defective components, or replace O-rings and gaskets.
2. The solenoid valve is partially opened
Possible reasons: 1. The pressure difference is too low. 2. Damaged or bent armature tube. 3. Impurities in the diaphragm/piston 4. Quality in the valve seat 5. Impurities in the armature/armature tube 6. Corrosion/cavitation 7. Lost parts after disassembling the solenoid valve.
Troubleshooting:
Check the technical data of the check valve and the correct pressure. Replace the appropriate valve.
Check the diaphragm and/or piston ring, replace the O-ring and gasket
Remove impurities, replace defective components, parts, or replace O-rings and gaskets.
The solenoid valve is not closed/partially closed
possible reason:
1. Continuous energization on the coil
2. The manual valve stem is not twisted back after use.
3 Vibration occurred in the discharge pipe. Pressure difference is too high in open position
4 The outlet pressure is sometimes higher than the inlet pressure.
5 Damaged or bent armature tube.
6 The valve plate, diaphragm or valve seat is defective.
7 The diaphragm or support plate is not round enough.
8. Impurities in the valve plate. Impurities in the pilot hole. Impurities in the armature tube
9. Orientation/Erosion of the main orifice/cavitation
Troubleshooting:
Lift up the solenoid valve coil, do you feel resistance?
Do not remove the coil from the valve if it is energized, otherwise the coil may burn out.
Check the connection coil and the wiring itself. Check the relay contacts and wire connections.
Check the position of the manual valve stem.
Check the technical parameters of the solenoid valve.
Check the pressure and flow conditions and replace the appropriate valve. And check the rest of the system.
Remove impurities, replace defective components, parts, or replace O-rings and gaskets.
Three, noisy solenoid valve
possible reason:
1 Frequency noise (humming) 2 Water hammer when opening the solenoid valve 3 Water hammer when closing the solenoid valve 4 Excessive pressure difference and/or vibration in the discharge pipe
Troubleshooting:
The solenoid valve is not the problem. Check power
Check the technical parameters of the solenoid valve, check the pressure and flow conditions
Replace the appropriate valve, and check the rest of the system.
Fourth, the wire is burned out (the coil is very cold when it is energized)
possible reason:
1, the voltage/frequency is incorrect
2, a short circuit in the coil (may be caused by moisture in the coil)
3. The armature cannot be lifted in the armature tube:
A. Damaged or bent armature tube;
B. Damaged armature;
C. Impurities in the armature tube
4. The medium temperature is too high. 5 The ambient temperature is too high. 6 Damaged pistons and piston rings (on the EVRA servo-controlled solenoid valve).
Troubleshooting:
Check the coil data.
If necessary, replace with an appropriate coil. Check the wiring diagram or the wiring itself. Check for large voltage changes. Allow 10% higher than rated voltage; 15% lower than rated voltage
Check for short circuits in the rest of the system. Check the wire connections of the coil.
After repairing the fault, replace the coil (make sure the voltage is correct)
Check the O-ring and the inner top nut installed on the armature tube.
Remove impurities, replace defective components, parts, or replace O-rings and gaskets.
Compare valve and coil data with installation data. Replace the appropriate valve.
It may be necessary to change the valve position. Install valve and coil data for comparison. Increase the ventilation of valves and coils.
Introduction of solenoid valve and troubleshooting method
Recent related posts
-
08/20/2020
Introduction of solenoid valve and troubleshooting method
1. Symptoms-the solenoid valve does not open possible reason: 1 The coil has no voltage. 2 Incorrect voltage/frequency 3 Coil burned out 4 Pressure
-
08/20/2020
Introduction and characteristics of several throttling devices in refrigeration equipment
Among the four major components in the refrigeration system, the throttling device is one, and its function makes it have its own role.
-
08/20/2020
Installation and placement conditions of cooling tower of thermal shock tester
Let's learn about the installation and placement conditions of the cooling tower of the thermal shock tester with the editor of okmarts.com! 1. The ground is flat and well ventilated;
-
08/20/2020
Influencing factors and measures of energy saving in air conditioning and refrigeration systems
The use of electrical equipment has a huge demand for energy, and the refrigeration industry has become an important industry in my country's household appliances.
-
08/20/2020
How to use small cold storage in summer with good energy saving effect
Summer is the peak period for cold storage installation. When many people in the food-related industries are ready to consider cold storage installation, there are many factors to consider when installing cold storage in summer
-
08/20/2020
How to prevent moisture caused by steam penetration in cold storage projects
Under normal circumstances, excessive air humidity causes rapid growth of mold, moldy food, and corrosion of cold storage building materials. Therefore, the moisture-proof of cold storage projects is also particularly important.
-
08/20/2020
How to prevent high temperature alarm of industrial chiller
In the hot and hot summer, the frequency of use of industrial chillers is the highest in a year, and summer is also the season when industrial chillers have the most frequent high temperature alarms.
-
08/20/2020
How to prevent high temperature alarm of industrial chiller in summer
In the high temperature and hot summer, the frequency of use of industrial chillers is the highest in a year, and summer is also the season when industrial chillers have the most frequent high temperature alarms.
-
08/20/2020
How to maximize energy saving of industrial chillers
1. Industrial water chillers prevent and reduce pipeline fouling to improve the heat exchange efficiency of condensers and evaporators. If water treatment is not done well, calcium
-
08/20/2020
How to judge whether the refrigeration effect of industrial refrigerators is good
The quality of industrial refrigerators can be judged by carefully understanding the cooling performance of the equipment. If during the long-term operation of the equipment, the operation safety and stability of the equipment is very high,
Customers frequently viewed
IWAYA DENKI Water Pump 25CJT0752
Panasonic Servo Motor MHMF022L1V2M
Honeywell Solenoid Valve VE4025B1045
ROTEN Mechanical Seal 8E5K-22-X
NMB Sensor CM085-100N
CHINT Switch NXM-125S/3300 125A 3P
Danfoss Compressor HRP032T2LP6
COPAL Transmitter PG-75-353G-NVR1
Siemens PLC 6ES7195-7HC00-0XA0
Omron Switch D4C-3533

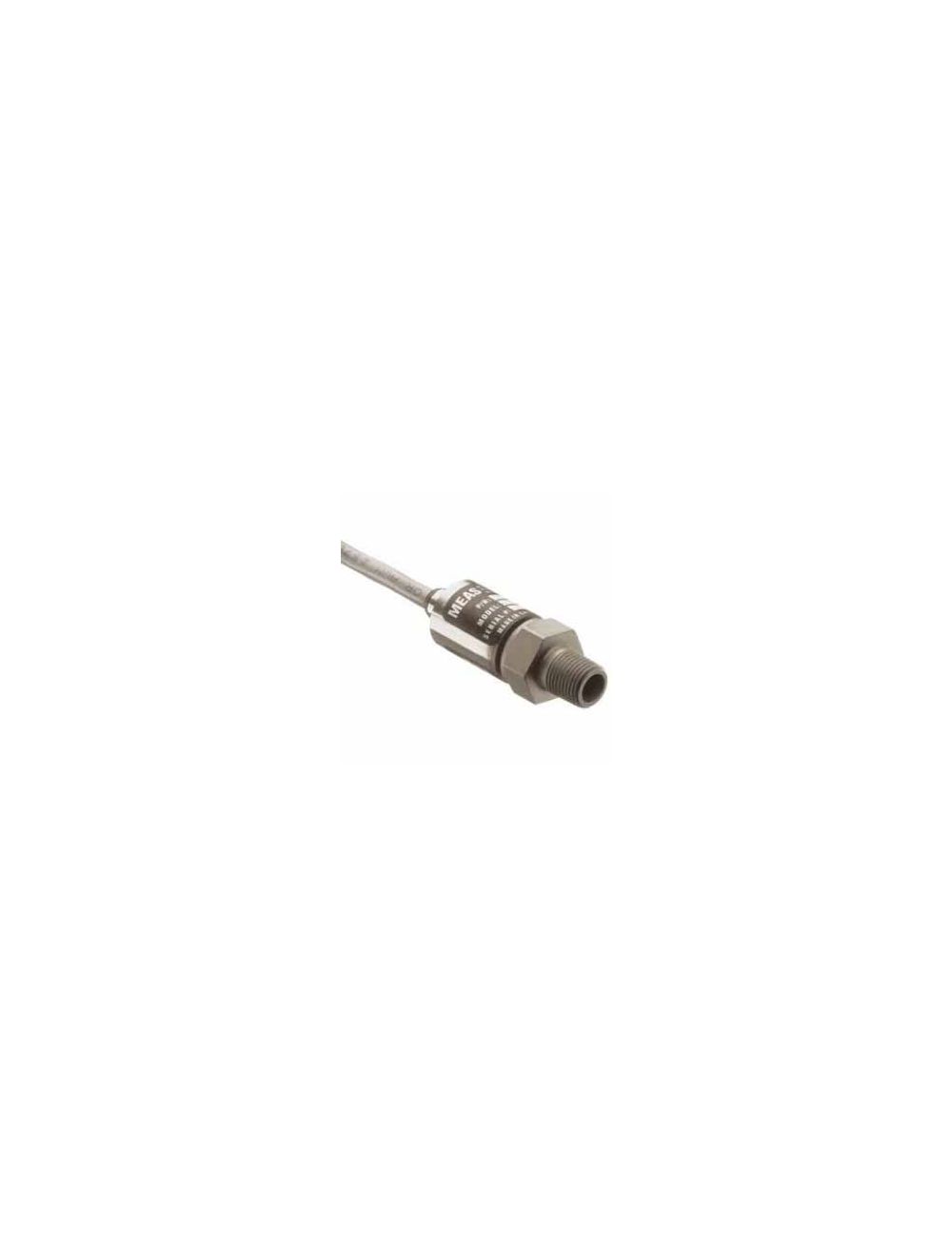

Meas Transmitter MSP-300-035-B-5-W-1
