Step-by-Step Guide: How to Fix Heat Pump Freezing Up in Winter

Figure 1: Heat pump unit in cold weather.

A heat pump is an essential component of your HVAC system that helps regulate indoor temperatures during the winter months. It is designed to work efficiently even in sub-zero temperatures, but sometimes, it may freeze up, causing discomfort and inconvenience.

A frozen heat pump can also lead to costly repairs if not addressed promptly. In this article, we'll discuss how to fix a heat pump freezing up in winter.

1. Understanding the Causes of Heat Pump Freezing up in Winter

Before we delve into how to fix a heat pump freezing up in winter, it's essential to understand the causes. Some of the common causes include:

● Dirty air filters
● Low refrigerant levels
● Obstructed airflow
● Defective defrost controls
● Outdoor temperature below freezing point
● Issues with the compressor

Now let's look at each of these causes in detail and how to address them.

1.1 Dirty Air Filters

Air filters are an integral part of your heat pump as they help trap dust, dirt, and other debris from entering your system. However, over time, they can become clogged, reducing airflow and causing your heat pump to freeze up.

To fix this issue, you need to replace your air filters regularly. Ideally, you should replace them every three months, but if you have pets or allergies, you may need to replace them more frequently.

Figure 2: Air filters.

1.2 Low Refrigerant Levels

Refrigerant is the fluid that flows through your heat pump, absorbing heat from the outside air and releasing it indoors. If your refrigerant levels are low, it can cause your heat pump to freeze up. This is because low refrigerant levels result in reduced pressure and temperature, which can cause the evaporator coil to freeze.

To fix this issue, you need to hire a professional HVAC technician to recharge your refrigeration system.

1.3 Obstructed Airflow

If there is an obstruction in your heat pump's airflow, it can cause the evaporator coil to freeze. Obstructions can be caused by debris, snow, or ice buildup around your outdoor unit.

To fix this issue, you need to clear any obstructions and ensure that there is adequate airflow around your heat pump. You should also trim any vegetation around your outdoor unit to prevent it from obstructing airflow.

1.4 Defective Defrost Controls

Defrost controls are responsible for ensuring that your heat pump's evaporator coil doesn't freeze up. If these controls are defective, they may not activate the defrost cycle, leading to a frozen heat pump.

To fix this issue, you need to hire an HVAC technician to inspect and repair your defrost controls.

Figure 3: Heat pump reverse cycle defrosting wiring diagram.

1.5 Outdoor Temperature Below Freezing Point

When the outdoor temperature drops below freezing point, it can cause your heat pump evaporator to freeze up. While you cannot control the weather, there are some measures you can take to prevent your heat pump from freezing up.

For instance, you can install a low-ambient kit that helps regulate the pressure and temperature of your refrigerant in sub-zero temperatures.

1.6 Issues with the Compressor

The heat pump can experience malfunctions due to problems with the compressor, such as motor failure. This can result in ice buildup on the heat pump. Failure to properly maintain the heater can lead to compressor breakdown, which can cause a loss of efficiency in the compressor.

2. How to Fix a Heat Pump Freezing up in Winter

Now that we've discussed the causes of a frozen heat pump let's look at how to fix it.

2.1 Step 1: Turn Off the Heat Pump

The first step in fixing a frozen heat pump is to turn it off. This will prevent further damage to the system and allow the ice to melt naturally. Do not attempt to remove the ice by chipping or scraping it off, as this can damage the unit.

2.2 Step 2: Check the Air Filters

If dirty air filters are the cause of the freezing, they should be replaced. Dirty air filters can restrict airflow, which can cause the heat pump to work harder and lead to ice buildup.

2.3 Step 3: Clear Any Obstructions

If there are any obstructions around your outdoor unit, clear them to ensure adequate airflow. Carefully remove any ice or snow from the outdoor unit. Be gentle to avoid damaging the coil or other components.

Figure 4: Clear snow around the heat pump.

2.4 Step 4: Check the Refrigerant Levels

Low refrigerant levels can cause the heat pump to operate inefficiently, leading to ice buildup. Have a qualified HVAC technician check the refrigerant levels and add more if necessary.

2.5 Step 5: Turn on the Defrost Mode

This process will take a few minutes. If the defrost control is bad, you can choose manual defrosting. Use a spray bottle or hose to apply warm (not hot) water to the frozen coil to help it thaw. Be cautious not to use boiling water, as it can damage the heat pump.
Allow the heat pump to defrost. Give the heat pump time to defrost fully. This may take several hours, depending on the extent of the freezing.

Turn the heat pump back on. Once the heat pump has defrosted, turn the circuit breaker back on and switch the thermostat to "heat" mode.

3. Preventing Heat Pump Freezing up in Winter

Prevention is always better than cure. Here are some tips to prevent your heat pump from freezing up during the winter:

Figure 5: Heat pump unit.

3.1 Regular Maintenance

Schedule regular maintenance for your heat pump. This includes checking and cleaning air filters, inspecting the refrigerant levels, and ensuring proper airflow.

3.2 Inspect and Clean the Outdoor Unit

Regularly inspect the outdoor unit for any debris, such as leaves or snow, which may obstruct airflow. Keep the area around the heat pump clean and clear to ensure proper operation.

3.3 Ensure Proper Drainage

Make sure the heat pump has proper drainage to prevent water accumulation, which can lead to freezing.

3.4 Insulate Exposed Pipes

Insulating exposed pipes can help prevent freezing and improve the overall efficiency of the heat pump.

Figure 6: Heat pump pipes.

3.5 Change Air Filters

Changing the air filters regularly can help ensure proper airflow and prevent ice buildup on the heat pump.

3.6 Install a Programmable Thermostat

A programmable thermostat can help regulate the temperature in your home more efficiently, which can reduce the amount of time your heat pump needs to run and prevent ice buildup.

3.7 Use a Heat Pump Cover

A heat pump cover can help protect the outdoor unit from the elements, reducing the risk of ice buildup. However, it's important to use a cover specifically designed for heat pumps, as using an improper cover can impede airflow and cause more harm than good.

3.8 Install a Supplemental Heat Source

In areas with extremely cold temperatures, it may be necessary to install a supplemental heat source, such as electric heat strips, to provide additional warmth during the winter months. This can help prevent ice buildup on the heat pump and ensure it operates efficiently.

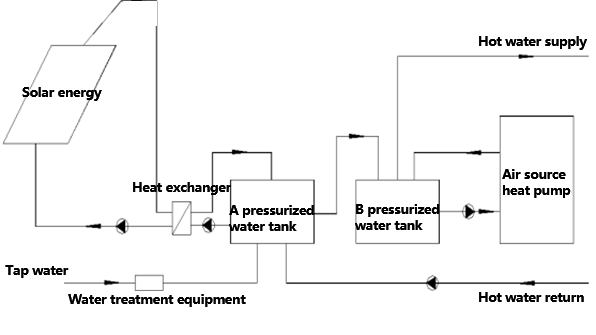

Figure 7: Combining heat pumps and solar panel heating.

3.9 Install a Low-Ambient Kit

If you live in an area with sub-zero temperatures, consider installing a low-ambient kit to regulate the pressure and temperature of your refrigerant.

4. Conclusion

A frozen heat pump can cause discomfort and inconvenience during the winter months. However, with proper maintenance and timely repairs, you can prevent this issue and ensure that your heat pump works efficiently throughout the winter season.

If you notice any signs of a frozen heat pump, such as reduced airflow or ice buildup around your outdoor unit, take immediate action to prevent further damage to your system. Remember, prevention is always better than cure.
