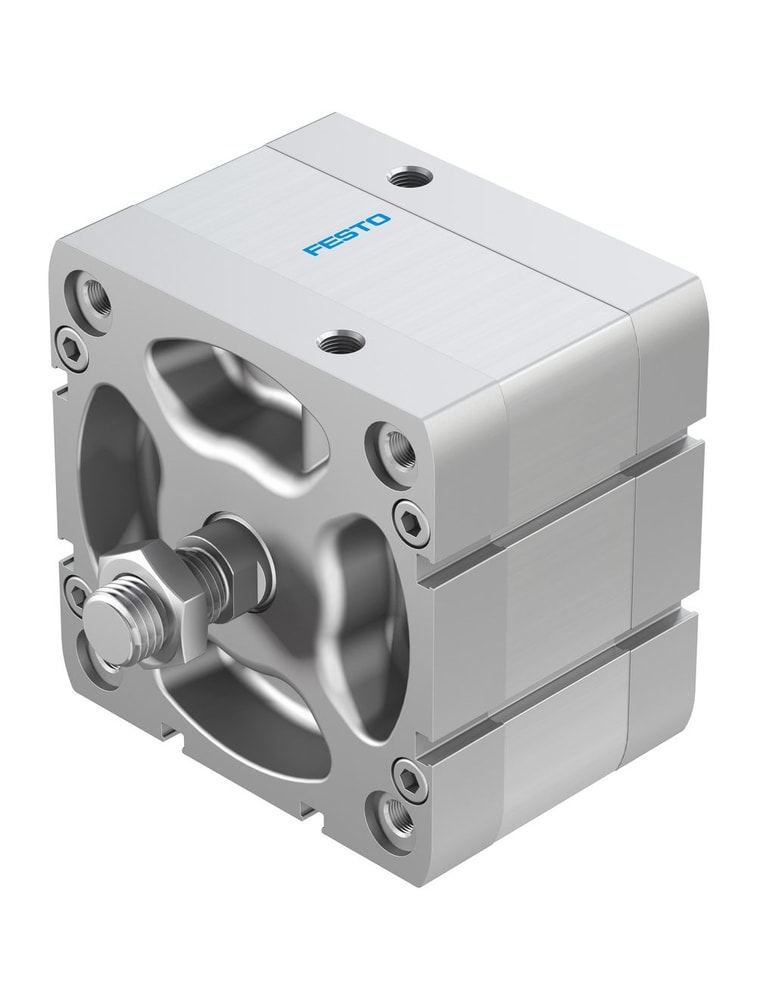

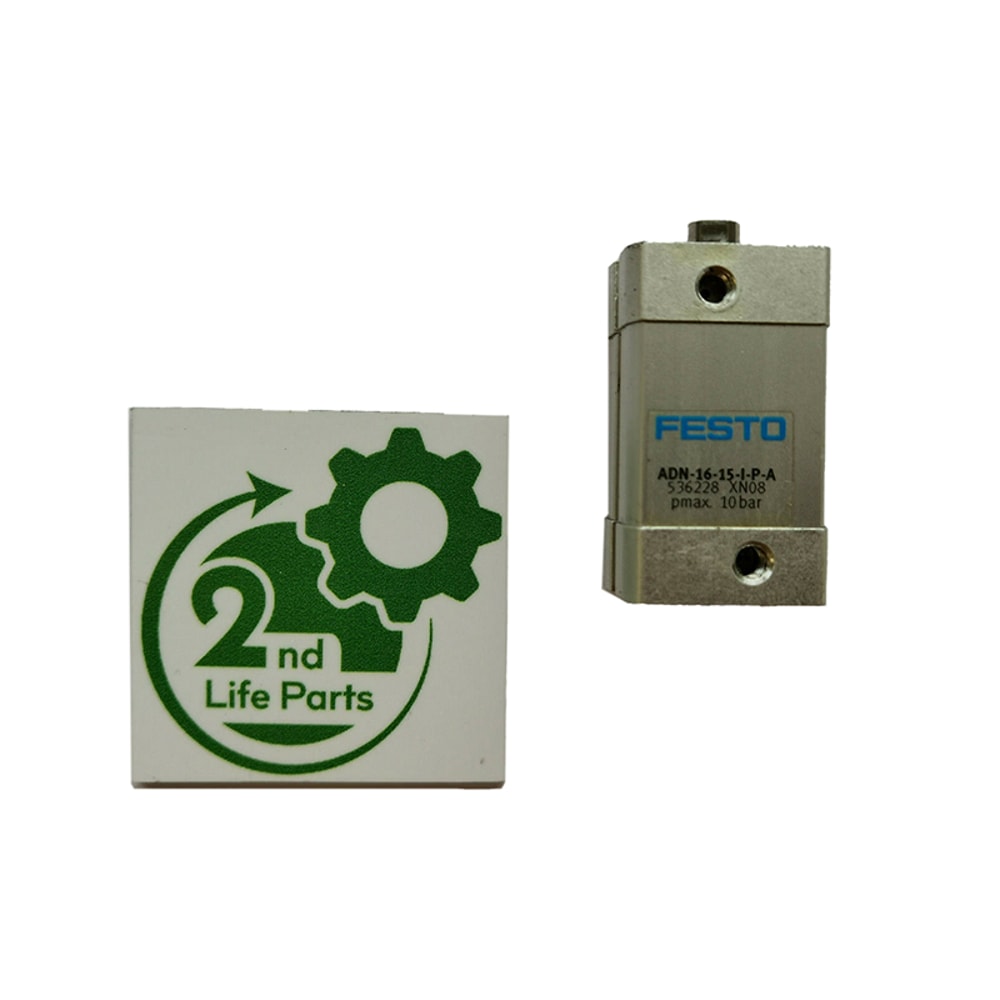

Festo Air Cylinder ADN-16-15-I-P-A
$ 70 .56
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 5
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
Stroke: 15 mm
Piston diameter: 16 mm
Piston rod thread: M4
Type code: ADN
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Conforms to standard: ISO 21287
Piston rod end: Internal thread
Position sensing: For proximity sensor
Symbol: 00991217
Variants: Piston rod at one end
Operating pressure: 1 bar - 10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Impact energy in the end positions: 0.15 J
Theoretical force at 6 bar, retracting: 90 N
Theoretical force at 6 bar, advancing: 121 N
Moving mass at 0 mm stroke: 15 g
Additional weight per 10 mm stroke: 14 g
Basic weight with 0 mm stroke: 79 g
Additional moving mass per 10 mm stroke: 4 g
Type of mounting: With through-hole: With internal thread: Optionally:: With accessories
Pneumatic connection: M5
Note on materials: RoHS-compliant
Cover material: Anodized: Aluminum
Seals material: TPE-U(PUR)
Piston rod material: High-alloy steel
Material of cylinder barrel: Wrought aluminum alloy: Smooth anodized
Piston diameter: 16 mm
Piston rod thread: M4
Type code: ADN
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Conforms to standard: ISO 21287
Piston rod end: Internal thread
Position sensing: For proximity sensor
Symbol: 00991217
Variants: Piston rod at one end
Operating pressure: 1 bar - 10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Impact energy in the end positions: 0.15 J
Theoretical force at 6 bar, retracting: 90 N
Theoretical force at 6 bar, advancing: 121 N
Moving mass at 0 mm stroke: 15 g
Additional weight per 10 mm stroke: 14 g
Basic weight with 0 mm stroke: 79 g
Additional moving mass per 10 mm stroke: 4 g
Type of mounting: With through-hole: With internal thread: Optionally:: With accessories
Pneumatic connection: M5
Note on materials: RoHS-compliant
Cover material: Anodized: Aluminum
Seals material: TPE-U(PUR)
Piston rod material: High-alloy steel
Material of cylinder barrel: Wrought aluminum alloy: Smooth anodized
