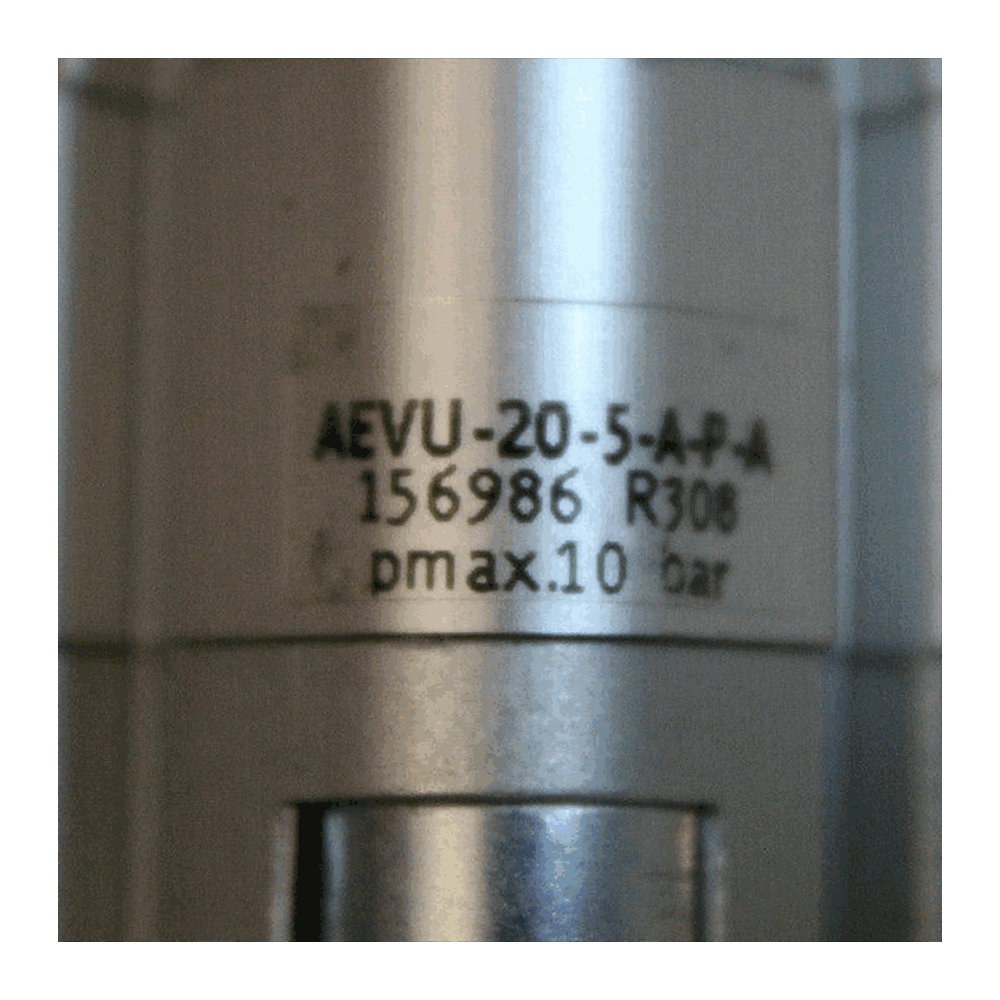

Festo Air Cylinder AEVU-20-5-A-P-A
$ 147 .35
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 3
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
Stroke: 5 mm
Piston diameter: 20 mm
Type code: AEVU
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Pushing: Single-acting
Piston rod end: External thread
Design: Piston: Piston rod
Position sensing: For proximity sensor
Symbol: 00991729
Variants: Piston rod at one end
Operating pressure: 1 bar - 10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Impact energy in the end positions: 0.14 J
Theoretical force at 6 bar, advancing: 180 N
Moving mass at 0 mm stroke: 20 g
Additional weight per 10 mm stroke: 23 g
Basic weight with 0 mm stroke: 149 g
Additional moving mass per 10 mm stroke: 6 g
Type of mounting: Optionally:: With through-hole: With accessories
Pneumatic connection: M5
Flange screws material: Steel, galvanized
Cover material: Wrought aluminum alloy
Material of dynamic seals: NBR: TPE-U(PU)
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: Wrought aluminum alloy
Piston diameter: 20 mm
Type code: AEVU
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Pushing: Single-acting
Piston rod end: External thread
Design: Piston: Piston rod
Position sensing: For proximity sensor
Symbol: 00991729
Variants: Piston rod at one end
Operating pressure: 1 bar - 10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Ambient temperature: -20 to 80 Celsius Degree
Impact energy in the end positions: 0.14 J
Theoretical force at 6 bar, advancing: 180 N
Moving mass at 0 mm stroke: 20 g
Additional weight per 10 mm stroke: 23 g
Basic weight with 0 mm stroke: 149 g
Additional moving mass per 10 mm stroke: 6 g
Type of mounting: Optionally:: With through-hole: With accessories
Pneumatic connection: M5
Flange screws material: Steel, galvanized
Cover material: Wrought aluminum alloy
Material of dynamic seals: NBR: TPE-U(PU)
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: Wrought aluminum alloy
