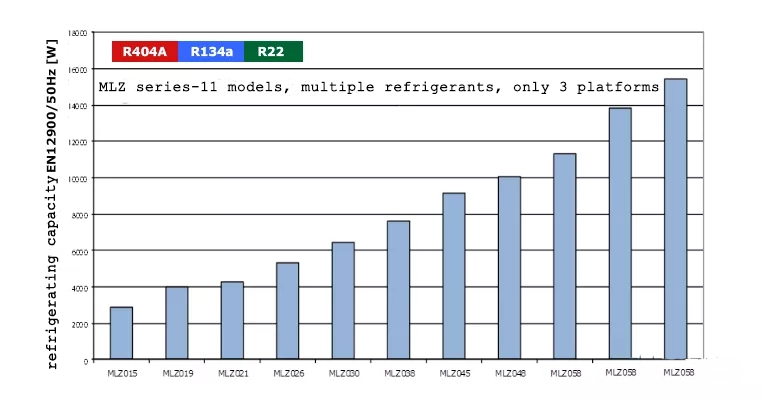

Danfoss medium temperature refrigeration compressor M series Danfoss MLZ/MLM compressors are specially designed for medium temperature refrigeration applications, using a unique scroll design, providing a variety of refrigerant options (R404A, R134a, R507, R22) cooling capacity covers 2 to 10 horsepower.
The main characteristics of the compressor: Energy efficient Use flexible vortex Hot oil protection Compact structure, light weight and low noise Mainly used in beverage vending machines, display cabinets, refrigerators, milk jugs, wine cellars, etc.

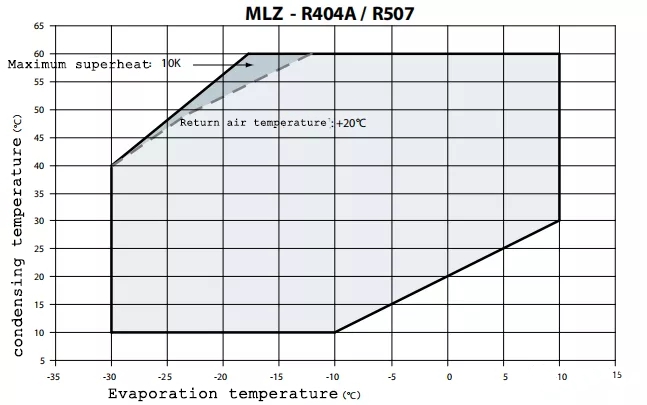

Energy efficient: o Energy-efficient motor o o High volume ratio design o o Low ambient temperature operation, can reach 10℃ o Flexible vortex: Axial flexibility: It is mainly to use the gas in the intermediate pressure chamber below the movable vortex to lift the movable vortex, so as to achieve the top seal of the scroll. Radial flexibility: When the crankshaft rotates, the slider and the driving surface allow the movable scroll to "swing out" until the side of the scroll disk contacts, generating side contact force. The power generated by the compressor is always just right, and the scroll disk is combined without risk of efficiency loss and reliability. Compact structure, light weight and low noise: o Press-fit assembly design o o Unique exhaust check valve ensures quiet operation o o 25% weight reduction compared to similar scrolls o Compressor operating range
R404A technical parameters:
