Ducted vs Ductless Heat Pump: Which One is Right for You?

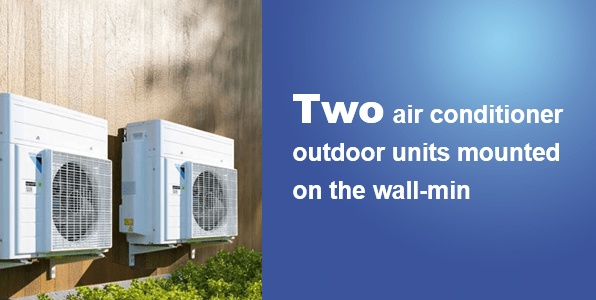

Figure 1: Air conditioner outdoor units.

When it comes to heating and cooling your home, there are many options available. Two popular choices are ducted and ductless heat pumps. While both types of systems can effectively heat and cool your home, they differ in their design, installation requirements, and cost.

In this article, we will compare the pros and cons of ducted vs ductless heat pumps to help you determine which one is right for your home.

1. What is a Ducted Heat Pump?

A ducted heat pump, also known as a central heat pump, is a system that uses a network of ducts to distribute heated or cooled air throughout your home.

The system consists of an outdoor unit that houses the compressor and condenser, and an indoor unit that contains the evaporator coil and air handler under cooling condition. The indoor unit is typically located in a closet, attic, or basement, and is connected to the ductwork.

The heat pump unit is typically located outside the home and connected to an indoor air handler through the refrigeration pipe. The air handler then circulates the conditioned air through the ducts and into each room.

Figure 2: Heat pump ducting systems.

1.1 Pros of Ducted Heat Pumps

● Whole-house heating and cooling: Ducted heat pumps are designed to heat and cool your entire home, making them an excellent choice if you want consistent temperature control throughout your living space.

● Energy efficiency: Ducted heat pumps are highly efficient and can provide significant energy savings compared to traditional heating and cooling systems. According to the Department of Energy, heat pumps can reduce energy usage by up to 50% compared to electric resistance heating systems.

● Aesthetics: Ducted heat pumps are concealed within your walls and ceilings, making them virtually invisible. This can be an advantage if you prefer a seamless look without bulky equipment taking up valuable floor space.

1.2 Cons of Ducted Heat Pumps

● Installation complexity: Ducted heat pumps require professional installation and can be more complex than ductless systems. The installation process involves running ductwork throughout your home, which can be time-consuming and costly.

● Cost: Ducted heat pumps tend to be more expensive than ductless systems, especially if you need to install new ductwork. However, the long-term energy savings can offset this cost over time.

● Maintenance: Ducted heat pumps require regular maintenance to keep the system running efficiently. This includes changing air filters, cleaning ducts, and inspecting the outdoor unit.

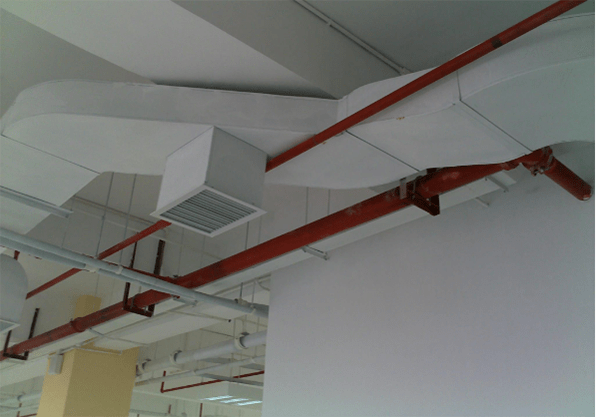

Figure 3: Ducted heat pump ventilation system.

2. What is a Ductless Heat Pump?

A ductless heat pump, also known as a mini-split heat pump, is a system that uses individual units to heat or cool specific rooms or zones in your home. Each indoor unit is connected to an outdoor unit through a small conduit that contains refrigerant lines and power cables.

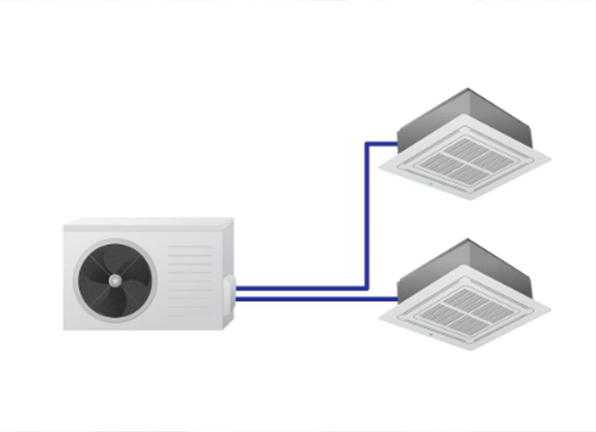

Figure 4: Ductless heat pump system.

2.1 Pros of Ductless Heat Pumps

● Easy installation: Ductless heat pumps are easier to install than ducted systems because they don't require ductwork. The indoor units can be mounted on walls or ceilings, and the outdoor unit can be placed outside the home. This makes them an excellent option for retrofitting older homes or for rooms without existing ductwork.

● Zone heating and cooling: Ductless heat pumps allow for zone heating and cooling, meaning you can control the temperature of each room independently. This can be useful if you have rooms that are rarely used or if you want different temperatures in different areas of your home.

● Energy efficiency: Ductless heat pumps are highly efficient and can provide significant energy savings compared to traditional heating and cooling systems. According to the Department of Energy, ductless systems can reduce energy usage by up to 30% compared to central air conditioning systems.

2.2 Cons of Ductless Heat Pumps

● Limited coverage: Ductless heat pumps are designed to heat or cool individual rooms or zones, which may not be ideal if you want whole-house heating and cooling. If you want consistent temperature control throughout your home, you may need to install multiple units, which can be costly.

● Aesthetics: Ductless heat pumps require indoor units to be mounted on walls or ceilings, which can be unsightly for some homeowners. However, many manufacturers offer sleek and modern designs that can blend in with your decor.

● Noise: Some ductless heat pumps can be noisy, especially if the outdoor unit is located close to a bedroom or living area. However, many models have advanced sound-dampening technology to reduce noise levels.

Figure 5: Turn on the air conditioner indoor unit.

3. Which One is Right for You?

Choosing between ducted vs ductless heat pumps depends on several factors, including your budget, home layout, and heating and cooling needs.

If you want whole-house heating and cooling and don't mind the installation complexity, a ducted heat pump may be the best option for you. However, if you have an older home without existing ductwork or want zone heating and cooling, a ductless heat pump may be a better choice.

Ultimately, the decision comes down to your personal preferences and budget. Consider consulting with a professional HVAC contractor to help you determine which system is right for your home. With the right system, you can enjoy efficient and comfortable heating and cooling all year round.

4. FAQs

4.1 Is Ducted Heat Pump Better than Ductless?

There is no clear answer to whether ducted heat pumps are better than ductless heat pumps, as it depends on the specific needs of the home.

Ducted heat pumps are better suited for whole-house heating and cooling, as they can distribute air throughout the entire home via ductwork.
Ductless heat pumps, on the other hand, are more energy-efficient and easier to install, making them a good option for smaller homes or those with specific heating and cooling needs.

Ultimately, the choice between ducted and ductless heat pumps will depend on factors such as the size of the home, budget, and personal preferences.

Figure 6: Air conditioner installation.

4.2 Are Ducted Heat Pumps More Efficient?

Ducted heat pumps can be efficient, but their efficiency depends on several factors such as the quality of the ductwork and the insulation of the home. Ducted heat pumps can experience significant energy loss due to leaks in the ductwork, which can reduce the efficiency of the system and increase energy bills.

However, if the ductwork is properly designed and installed, ducted heat pumps can be very efficient and provide consistent heating and cooling throughout the home.

Ductless heat pumps, on the other hand, are generally more energy-efficient due to the absence of ductwork and the ability to heat or cool specific zones in the home.

4.3 Should I Get a Ducted Heat Pump?

Whether or not you should get a ducted heat pump depends on your specific heating and cooling needs and the characteristics of your home.

If you have a large home and want whole-house heating and cooling, a ducted heat pump may be the best option. However, if you have a smaller home or want to save money on energy bills, a ductless heat pump may be a better choice.

It's important to consider factors such as the size of your home, your budget, and your personal preferences when deciding which heating and cooling system to choose. It's a good idea to consult with a professional HVAC contractor who can assess your home and recommend the best heating and cooling system for your needs.
