Figure 1: Radiator fan.
The radiator fan is an essential component of a vehicle's cooling
system. It plays a crucial role in maintaining the optimal temperature for the engine to function at its best.
Understanding when the radiator fan turns on and the factors that trigger its operation is vital for vehicle owners
and enthusiasts alike.
In this article, we will explore the functionality of the radiator fan, its importance in preventing engine
overheating, and the various conditions that can prompt its activation. By the end, you'll have a comprehensive
understanding of when and why the radiator fan turns on.
1. The Purpose of the Radiator Fan
The radiator fan is primarily responsible for drawing air through the radiator to cool the engine coolant. This
helps prevent the engine from overheating, optimizing its performance and longevity.
The cooling process begins when the vehicle is in motion, and air naturally flows through the radiator. However,
during low-speed situations or when the vehicle is stationary, there may not be enough airflow to keep the engine
coolant at an ideal temperature. That's when the radiator fan comes into action.
Figure 2: radiator fan hanging on a car.
2. 3 Trigger Points of a Radiator Fan Turning on
2.1 Engine Temperature Thresholds
The engine temperature thresholds at which the radiator fan activates can vary between vehicles. The typical range
for the fan to kick in is between 200 to 230 degrees Fahrenheit (93 to 110 degrees Celsius). Once the temperature
exceeds the preset threshold determined by the manufacturer, the thermostat triggers the radiator fan motor.
It's important to note that the radiator fan may not immediately turn on after surpassing the temperature threshold.
Instead, it may have a slight delay to allow the coolant to absorb more heat from the engine. This delay helps
optimize the fan's efficiency and prevents unnecessary cycling.
2.2 Traffic Jams and Low-Speed Cooling
One of the most common scenarios where the radiator fan is frequently activated is during traffic jams or when driving at low speeds. In these situations, the airflow through the radiator is significantly reduced, leading to limited heat dissipation. The radiator fan compensates for the lack of natural airflow by forcefully drawing air through the radiator, ensuring adequate cooling.
Figure 3: Car cooling fan.
2.3 AC System and Radiator Fan Synchronization
In many vehicles, the operation of the air conditioning (AC) system is closely linked to the radiator fan. When the
AC system is activated, it places an additional load on the engine, generating extra heat.
To compensate for this extra heat, the radiator fan is triggered to ensure efficient cooling of both the engine and
the AC system. This synchronization prevents the engine from overheating and maintains optimal AC performance.
3. FAQs
3.1 Should Radiator Fan Come on When Car Starts?
The radiator fan may or may not come on immediately when the car starts. It depends on the car's design and the
operating conditions. In many vehicles, the radiator fan is controlled by the engine's temperature. If the engine is
cold when the car starts, the fan might not turn on right away because the engine doesn't require immediate cooling.
However, if the engine is already hot or if the ambient temperature is high, the radiator fan may activate as soon
as the car starts to help cool the engine. Ultimately, it's best to consult your vehicle's manual or contact a
qualified mechanic for specific information regarding your car's radiator fan operation.
3.2 How Long Should Radiator Fan Stay on?
The duration for which the radiator fan stays on can vary depending on several factors, including the operating
conditions, engine temperature, and the cooling needs of the vehicle.
Generally, the radiator fan will remain active until the engine temperature drops to a safe level. Once the
temperature reaches the desired threshold, the fan will automatically turn off.
In typical situations, the fan may stay on for a few minutes to cool down the engine after a long drive or during
high-temperature conditions. However, it's important to note that the radiator fan's duration of operation is
controlled by the vehicle's cooling system and may vary from one vehicle model to another.

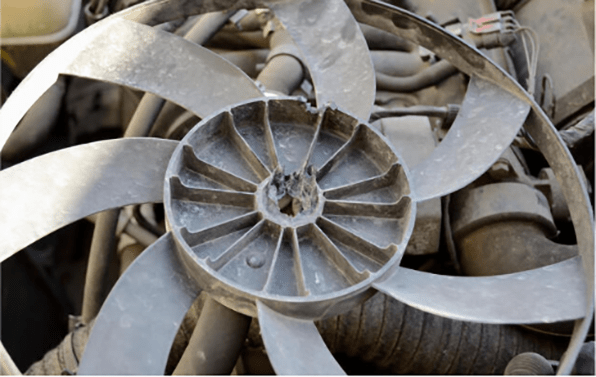

Figure 4: Broken engine cooling fan.
3.3 How Much is a Radiator Fan?
The cost of a radiator fan can vary depending on various factors such as the make and model of the vehicle, whether
it is an aftermarket or OEM (Original Equipment Manufacturer) part, and where you purchase it from. On average, a
radiator fan can range in price from around $50 to $300 or more.
It's important to note that this is just an estimate, and the actual cost may differ based on the specific
requirements of your vehicle. To get an accurate price, it's best to consult with a local auto parts store or check
online retailers for the available options and their respective prices.
3.4 How to Test Radiator Fan with Multimeter?
To test a radiator fan with a multimeter, follow these steps:
1.Disconnect the Fan: Locate the electrical connector that connects the fan to the wiring harness. Disconnect the
connector to gain access to the fan's power supply wires.
2.Set the Multimeter: Set the multimeter to the "DC voltage" or "VDC" setting. Choose a voltage range that covers
the expected voltage of the fan (typically 12 volts).
3.Connect Multimeter Probes: Touch the multimeter probes to the power supply wires of the fan connector. The red
probe should be connected to the positive wire (usually red or orange), and the black probe to the negative wire
(usually black or brown).
4.Check for Voltage: Start the engine and let it reach operating temperature. Observe the voltage reading on the
multimeter. It should read around 12 volts or the specified voltage for your vehicle. If there is no voltage or a
significantly lower reading, it indicates a problem with the power supply to the fan.
5.Test Fan Operation: If the voltage reading is correct, you can also test the fan's operation by manually
activating it using a scan tool or turning on the AC. The fan should start spinning when commanded.
By following these steps, you can use a multimeter to check the voltage supply to the radiator fan and ensure that
it is receiving the proper power. Remember to exercise caution when working around electrical components and consult
a professional if you are unsure or inexperienced.
Figure 5: Digital multimeter.
4. Conclusion
The radiator fan plays a vital role in maintaining engine temperature and preventing overheating. Understanding when
the radiator fan turns on is crucial for vehicle owners to ensure their engines operate optimally under varying
conditions.
Factors such as engine temperature thresholds, traffic conditions, and the operation of the AC system influence the
activation of the radiator fan. By recognizing these trigger points, you can better appreciate the complexity of the
cooling system and take necessary precautions to avoid engine overheating.
Regular maintenance and observation of the radiator fan's functionality will ensure reliable performance and the
longevity of your vehicle's engine.
