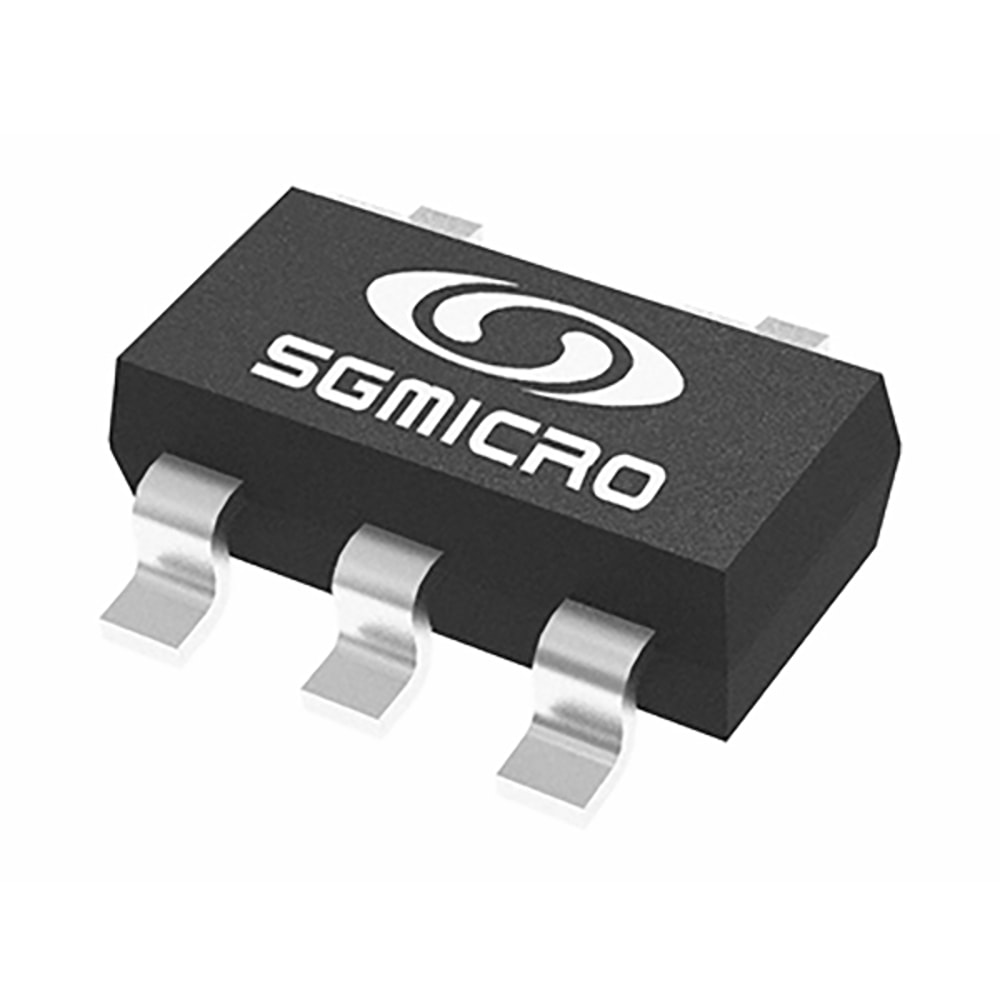

SGMICRO IC Integrated Circuit Chip SGM2019-ADJYN5G
$ 0 .18
✔ In Stock (Can ship in 5-7 days)
Quantity
MOQ : 1734
Payment Methods
Online Support 24/7
12 Months Warranty for New Products
30 Days Money Back Guarantee
The SGMICRO IC is high quality!
Operating Input Voltage Range: 2.5V to 5.5V
Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 2.6V, 2.8V, 2.85V, 3.0V, 3.3V
Adjustable Output Voltage Range: 1.2V to 5.0V
Output Voltage Accuracy: ±2.5% at +25℃
Low Output Noise: 30μVRMS (TYP)
Low Dropout Voltage: 270mV (TYP) at 300mA
High PSRR: 74dB (TYP) at 1kHz
Shutdown Current: 0.01μA (TYP)
Thermal Shutdown Protection
Output Current Limit
-40℃ to +85℃ Operating Temperature Range
Available in Green SC70-5 and SOT-23-5 Packages
ABSOLUTE MAXIMUM RATINGS
IN to GND ............................................................ -0.3V to 6V
Output Short-Circuit Duration .....................................Infinite
EN to GND...........................................................-0.3V to VIN
OUT, BP/FB to GND.............................. -0.3V to (VIN + 0.3V)
Power Dissipation, PD @ TA = +25℃
SOT-23-5.......................................................................0.4W
SC70-5...........................................................................0.3W
Package Thermal Resistance
SOT-23-5, θJA .......................................................... 260℃/W
SC70-5, θJA.............................................................. 330℃/W
Junction Temperature.................................................+150℃
Storage Temperature Range ........................-65℃ to +150℃
Lead Temperature (Soldering, 10s)............................+260℃
ESD Susceptibility
HBM.............................................................................4000V
MM.................................................................................400V
RECOMMENDED OPERATING CONDITIONS
Operating Temperature Range .......................-40℃ to +85℃
Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 2.6V, 2.8V, 2.85V, 3.0V, 3.3V
Adjustable Output Voltage Range: 1.2V to 5.0V
Output Voltage Accuracy: ±2.5% at +25℃
Low Output Noise: 30μVRMS (TYP)
Low Dropout Voltage: 270mV (TYP) at 300mA
High PSRR: 74dB (TYP) at 1kHz
Shutdown Current: 0.01μA (TYP)
Thermal Shutdown Protection
Output Current Limit
-40℃ to +85℃ Operating Temperature Range
Available in Green SC70-5 and SOT-23-5 Packages
ABSOLUTE MAXIMUM RATINGS
IN to GND ............................................................ -0.3V to 6V
Output Short-Circuit Duration .....................................Infinite
EN to GND...........................................................-0.3V to VIN
OUT, BP/FB to GND.............................. -0.3V to (VIN + 0.3V)
Power Dissipation, PD @ TA = +25℃
SOT-23-5.......................................................................0.4W
SC70-5...........................................................................0.3W
Package Thermal Resistance
SOT-23-5, θJA .......................................................... 260℃/W
SC70-5, θJA.............................................................. 330℃/W
Junction Temperature.................................................+150℃
Storage Temperature Range ........................-65℃ to +150℃
Lead Temperature (Soldering, 10s)............................+260℃
ESD Susceptibility
HBM.............................................................................4000V
MM.................................................................................400V
RECOMMENDED OPERATING CONDITIONS
Operating Temperature Range .......................-40℃ to +85℃
