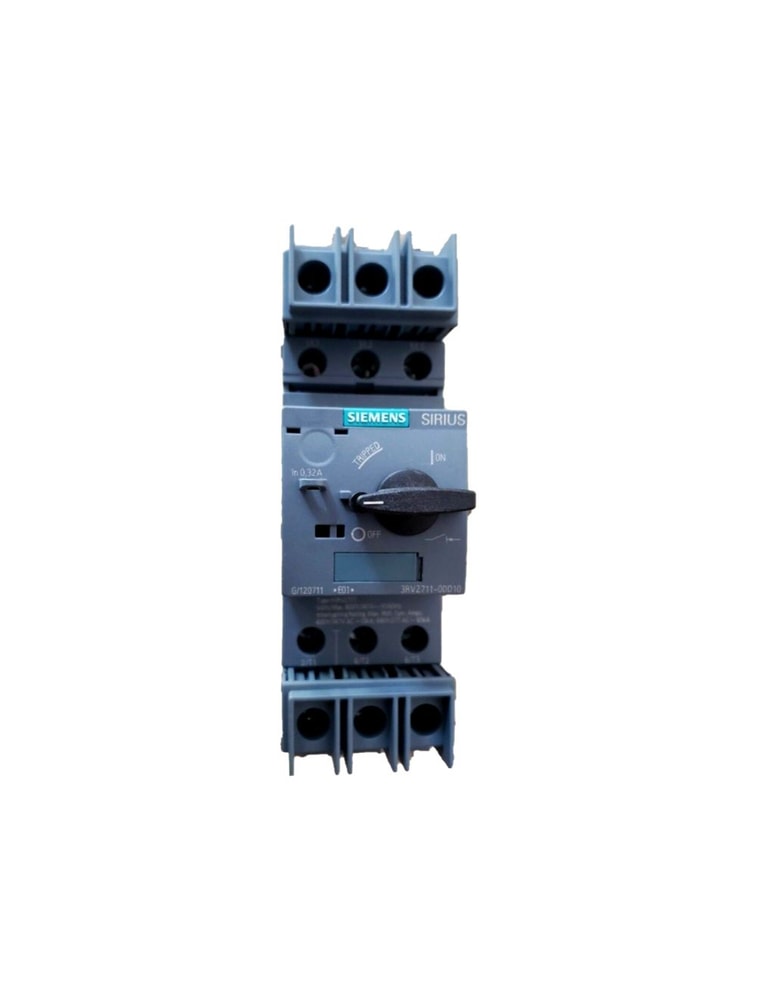

Circuit breaker size S00 for system protection with approval circuit
breaker UL 489, CSA C22.2 No.5-02 A-release 0.32 A N-release 4.2
A screw terminal Standard switching capacity
product brand name SIRIUS
product designation Circuit breaker
design of the product For system protection according to UL 489/CSA C22.2 No. 5
product type designation 3RV2
General technical data
size of the circuit-breaker S00
product extension
auxiliary switch Yes
power loss W for rated value of the current
at AC in hot operating state 5.5?W
at AC in hot operating state per pole 1.8?W
insulation voltage with degree of pollution 3 at AC
rated value
690?V
surge voltage resistance rated value 6?kV
maximum permissible voltage for safe isolation
in networks with grounded star point between
main and auxiliary circuit
400?V
in networks with grounded star point between
main and auxiliary circuit
400?V
Main circuit
number of poles for main current circuit 3
operating voltage
rated value 690?V
at AC-3 rated value maximum 690?V
operating frequency rated value 50?...?60?Hz
operating current rated value 0.32?A
operating current
at AC-3
at 400 V rated value 0.32?A
operating power
at AC-3
at 230 V rated value 40?W
at 400 V rated value 90?W
at 500 V rated value 120?W
at 690 V rated value 120?W
operating frequency
at AC-3 maximum 15?1/h
