Purge Valve: Everything You Need to Know

BOSCH purge valve
Figure 1: Purge valve.


In the intricate ecosystem of modern automobiles, where every component plays a vital role in ensuring smooth functioning, the purge valve stands out as a crucial part of the emissions control system. From its function to its working principle, and maintenance, understanding the purge valve is essential for every car owner. In this comprehensive guide, we'll delve into everything you need to know about the purge valve.

1. What is a Purge Valve in a Car?

The purge valve, also known as the canister purge valve, purge solenoid valve, is a fundamental component of a vehicle's evaporative emissions control (EVAP) system. It serves a pivotal role in managing the release of fuel vapors from the charcoal canister and directing them back into the engine for combustion. This process is vital for reducing harmful emissions and ensuring compliance with environmental regulations.



a vehicle's evaporative emissions control (EVAP) system
Figure 2: EVAP system.

2. How Does a Purge Valve Work?

The operation of the purge valve is regulated by signals from the engine control module (ECM), which monitors various engine parameters to determine when the purge valve should open or close. When commanded by the ECM, the purge valve opens, allowing a controlled amount of fuel vapors to flow into the engine intake manifold. This mixture of fuel vapors and air is then combusted during normal engine operation, contributing to efficient fuel consumption and reduced emissions.



activated carbon canister purge valve structure diagram
Figure 3: Purge valve diagram.

1-Injection molding body 2-Coil winding shaft 3-Copper wire 4-Terminal 5-Central shaft 6-Cover 7-Connecting rod 8-Sealing gasket 9-Diaphragm 10-Spring 11-Upper cover 12-Bracket 13-Piston 14- Rubber pad 15-Lower cover 16-Filter cotton 17-Small cover 18-First gas pipe 19-Second gas pipe

3. What Does a Purge Valve Do? (Purge Valve Functions)

The primary function of the purge valve is to control the flow of fuel vapors from the charcoal canister to the engine. During specific driving conditions, such as when the engine is running and operating at optimal temperatures, the ECM triggers the purge valve to open. This allows the fuel vapors to mix with fresh air and be drawn into the engine intake manifold for combustion.

Here's what the purge valve does in detail:

Evaporative Emission Control: Modern vehicles are equipped with an evaporative emission control system to prevent fuel vapors from escaping into the atmosphere. Fuel vaporization occurs in the fuel tank due to factors like temperature changes and fuel sloshing. The evaporative emission control system captures these vapors and stores them temporarily in a charcoal canister.

Purge Process: During normal engine operation, the engine's computer (ECU or PCM) periodically initiates a process called "purging." This involves opening the purge valve to allow stored fuel vapors in the charcoal canister to be drawn into the engine's intake manifold. The vapors mix with the incoming air and are burned in the combustion chambers during the normal combustion process.

Optimizing Air-to-Fuel Ratio: The purge valve helps maintain the proper air-to-fuel ratio in the engine by introducing the stored fuel vapors into the combustion process. This ensures efficient fuel utilization and reduces emissions.

Fuel Economy and Performance: By controlling the flow of fuel vapors, the purge valve contributes to better fuel economy and engine performance. It prevents the escape of unburned fuel vapors into the atmosphere while ensuring that the engine receives the appropriate amount of fuel vapor for combustion.

Emission Reduction: The primary purpose of the evaporative emission control system, including the purge valve, is to reduce harmful emissions from the vehicle. By capturing and recycling fuel vapors, the system helps minimize pollution and comply with environmental regulations.

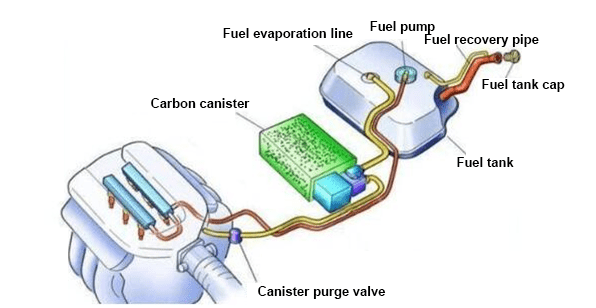

the location of the purge valve in an EVAP system in between the carbon canister and the engine
Figure 4: The location of the purge valve in an EVAP system.


The purge valve plays a crucial role in managing fuel vapors within the vehicle's evaporative emission control system. It helps maintain proper engine operation, improves fuel efficiency, reduces emissions, and contributes to overall vehicle performance and environmental protection.

4. How to Clean Purge Solenoid Valve

Over time, the purge solenoid valve may accumulate dirt, debris, or carbon deposits, potentially impairing its functionality. Cleaning the purge solenoid valve is a straightforward maintenance task that can help restore optimal performance.

Cleaning a purge solenoid valve can be done relatively easily with basic tools and some cleaning solutions. Here's a general guide on how to clean a purge solenoid valve:

1.Locate the Purge Solenoid Valve: The purge solenoid valve is typically located near the engine or the charcoal canister, which is usually found near the fuel tank. Refer to your vehicle's service manual or online resources to locate it accurately.



the location of the purge solenoid valve
Figure 5: The location of the purge solenoid valve.


2.Disconnect the Electrical Connector: Before cleaning the purge solenoid valve, disconnect the electrical connector to prevent any electrical issues or short circuits.

3.Remove the Purge Solenoid Valve: Depending on your vehicle's make and model, you may need to remove other components or hoses to access the purge solenoid valve. Once accessible, remove the valve carefully to avoid damaging it.

4.Inspect for Dirt or Debris: Examine the purge solenoid valve for any dirt, debris, or buildup that may be causing it to malfunction. Use a flashlight if necessary to get a clear view.

5.Clean the Valve: Use a suitable cleaning solution to clean the purge solenoid valve. You can use electrical contact cleaner, carburetor cleaner, or a similar solvent that won't damage the valve or its components. Spray the cleaner onto the valve and allow it to soak for a few minutes to loosen any stubborn debris.

6.Scrub Gently: Use a soft-bristled brush or a toothbrush to gently scrub the surface of the purge solenoid valve. Be careful not to apply too much pressure, as you don't want to damage any delicate parts.

7.Rinse and Dry: Once you've removed the dirt and debris, rinse the purge solenoid valve thoroughly with clean water to remove any leftover cleaner or residue. Allow the valve to air dry completely before reinstalling it.

8.Reinstall the Valve: Carefully reinstall the cleaned purge solenoid valve back into its original location. Make sure it is properly seated and secured to prevent any leaks or loose connections.

9.Reconnect the Electrical Connector: Once the valve is securely in place, reconnect the electrical connector to restore power to the solenoid.

10.Test the System: After cleaning and reinstalling the purge solenoid valve, start the engine and check for any signs of improvement in the vehicle's performance. You may also want to clear any trouble codes using a diagnostic scanner to ensure that the issue has been resolved.

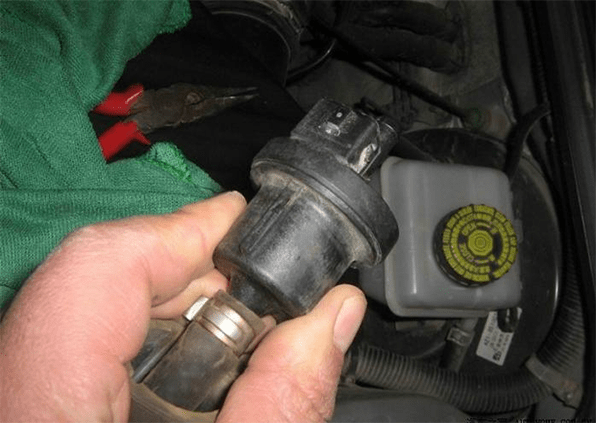

an old purge valve with dust on it
Figure 6: An old purge valve.


Remember to follow safety precautions and use appropriate cleaning solutions when working on your vehicle's purge solenoid valve. If you're unsure about any step or if you encounter any difficulties, it's always best to consult a professional mechanic for assistance.

5. How Long Can You Drive With a Bad Purge Valve?

Driving with a malfunctioning purge valve is not recommended, as it can lead to various issues, including increased emissions, reduced fuel efficiency, and potential damage to other engine components. While the vehicle may still be operable with a bad purge valve, ignoring the issue for an extended period can exacerbate problems and result in more significant repairs. It is advisable to address any issues with the purge valve promptly to maintain optimal vehicle performance and compliance with emissions regulations.

6. Conclusion

The purge valve plays a critical role in the emissions control system of modern vehicles, contributing to reduced emissions and improved fuel efficiency. Understanding its function, working principle, and maintenance requirements is essential for every car owner. By staying informed and addressing any issues promptly, you can ensure that your vehicle operates smoothly and complies with environmental standards.
