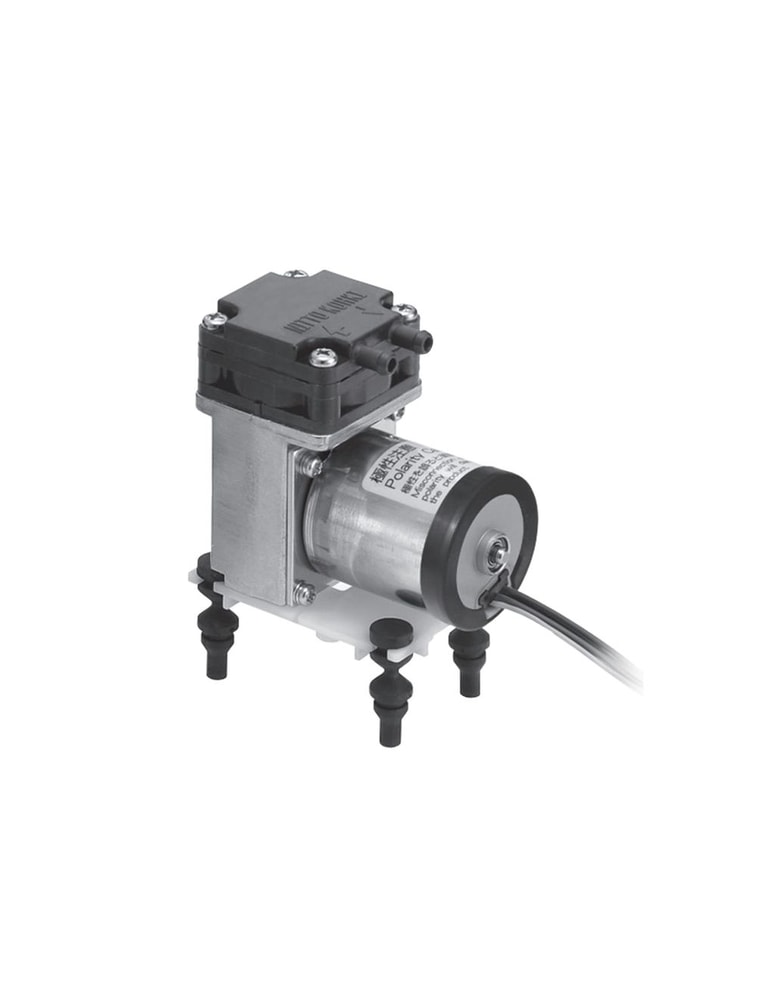

nitto kohki Diaphragm Pump DP0110-X3
There is no price at present, you can Request a Quote
The nitto kohki Diaphragm Pump is high quality!
Attainable Vacuum
-66.7 kPa (-500 mmHg)
-667 mbar
-19.7 in.Hg
Free Air
Displacement
7.5 L/min
0.265 cfm
Rated Voltage 12 V DC
Maximum Pressure
150 kPa (1.5 kgf/cm2)
1.5 bar
21.3 psig
Maximum Current 1.4 A or less
Duty Cycle Continuous
Rated Performance
(MTTF) 5,000 hours
Control(PWM) 2.5 - 5 V, 15-25 kHz, Duty cycle 80 - 100%
Inlet 6 mm O.D. straight barb
Outlet 6 mm O.D. straight barb
Coil Insulation Class A or its equivalent (JETL)
Mounting Dimensions 50 (L) x 30 (W) mm
1-31/32" (L) x 1-3/16" (W)
Attainable Vacuum
-66.7 kPa (-500 mmHg)
-667 mbar
-19.7 in.Hg
Free Air
Displacement
7.5 L/min
0.265 cfm
Rated Voltage 12 V DC
Maximum Pressure
150 kPa (1.5 kgf/cm2)
1.5 bar
21.3 psig
Maximum Current 1.4 A or less
Duty Cycle Continuous
Rated Performance
(MTTF) 5,000 hours
Control(PWM) 2.5 - 5 V, 15-25 kHz, Duty cycle 80 - 100%
Inlet 6 mm O.D. straight barb
Outlet 6 mm O.D. straight barb
Coil Insulation Class A or its equivalent (JETL)
Mounting Dimensions 50 (L) x 30 (W) mm
1-31/32" (L) x 1-3/16" (W)
