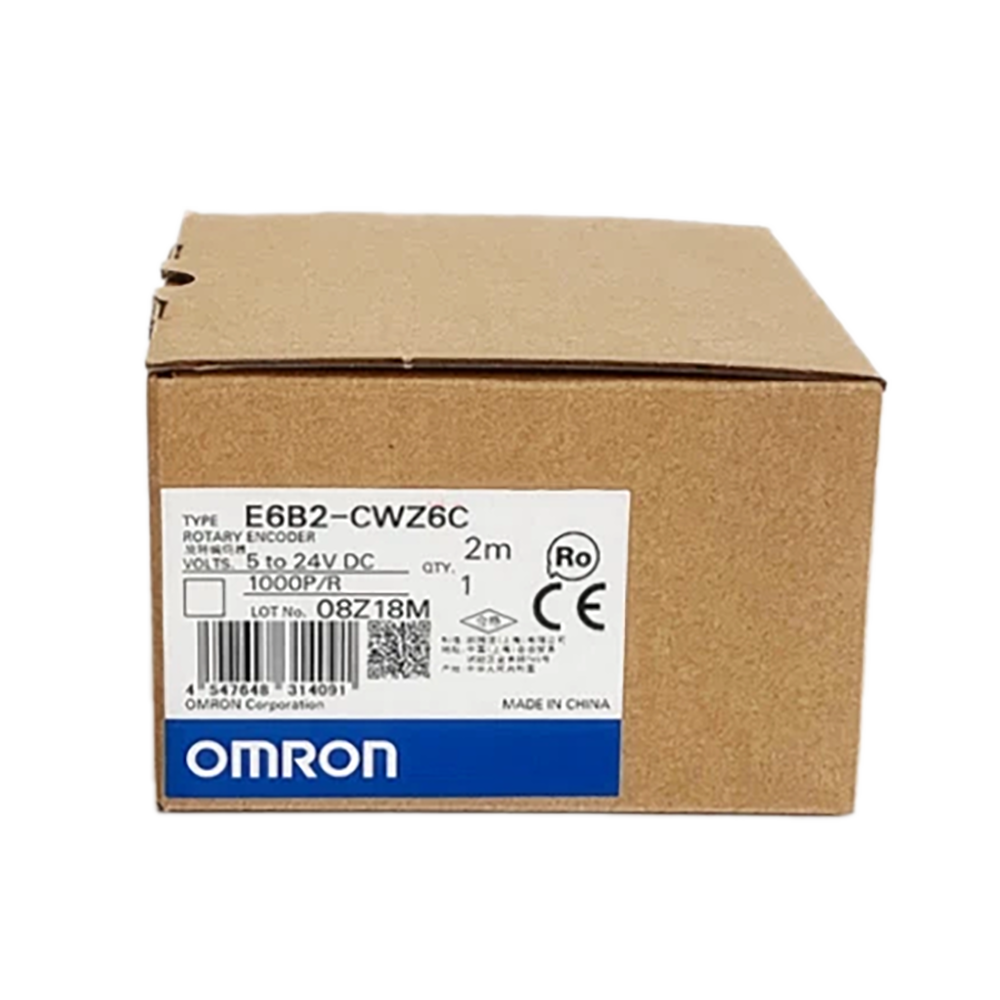

Omron General-purpose Incremental Rotary Encoder E6B2-CWZ6C 1000P/R 2M
There is no price at present, you can Request a Quote
E6B2CWZ6C1000PR2M
Resolution 1000 P/R
Output phases A, B and Z
Control output NPN open collector
Connection method Pre-wired models (Cable length: 2 m)
Power supply voltage 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max.
Current consumption 80 mA max.
Load power supply voltage 30 VDC max.
Load current 35 mA max. (Sink current)
Residual voltage 0.4 V max. (at sink current 35 mA)
Starting positional point Supported
Max. response frequency 100 kHz
Max. permissible rotation 6000 r/min
Resolution 1000 P/R
Output phases A, B and Z
Control output NPN open collector
Connection method Pre-wired models (Cable length: 2 m)
Power supply voltage 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max.
Current consumption 80 mA max.
Load power supply voltage 30 VDC max.
Load current 35 mA max. (Sink current)
Residual voltage 0.4 V max. (at sink current 35 mA)
Starting positional point Supported
Max. response frequency 100 kHz
Max. permissible rotation 6000 r/min
