5 Common Faults and Solutions of Air Cylinders?

Pneumatic air cylinder SC 100 x 200 PT1/2

Figure 1: A air cylinder .
(Go to Okmarts and pick the Air Cylinder you need)



1. Fault 1: External Leakage at Cylinder Piston Rod

Piston rods

Figure 2: Piston rods.



Cause 1: The guide sleeve, rod seal ring or piston rod are worn.
Solution 1: Replace it. Improve lubrication. Use guide rails.

Cause 2: The piston rod is damaged and corroded.
Solution 2: Replace it. Remove condensate in time.

Cause 3: There are impurities between the piston rod and the guide sleeve.
Solution 3: Remove impurities. Install a dust boot.

2. Fault 2: Interruption of Cylinder Operation

Cause 1: The limit switch is out of control.
Solution: replace it.

Cause 2: The service life of relay has expired.
Solution: replace it.



A photo about the relay of air cylinder

Figure 3: The service life of relay has expired.



Cause 3: Poor wiring.
Solution: Check and tighten the fastening screw.

Cause 4: Poor contact of electric plug.
Solution: Insert it tightly or replace it.

Cause 5: Poor reversing action of solenoid valve.
Solution: Replace it.

Cause 6: Air is mixed in the oil of gas-liquid cylinder.
Solution: Remove the air from the oil.

3. Fault 3: The Cylinder Moves too Fast

Cause 1: Speed control valve is not installed.
Solution: Install one.

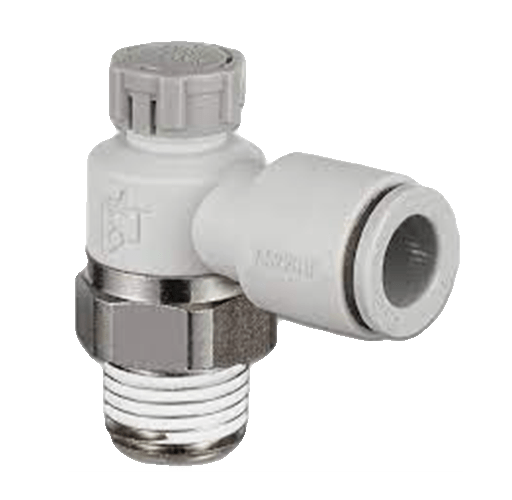

A photo about the speed control valve of the air cylinder

Figure 4: Speed control valve.



Cause 2: Improper size of speed control valve.
Solution: Replace it with one of the appropriate size

Cause 3: Unreasonable circuit design.
Solution: Use a gas-liquid damping cylinder or a gas-liquid exchanger to make the air cylinder move at a low speed.

4. Fault 4: The Cylinder Moves too Slowly

Cause 1: Insufficient air pressure.
Solution: Increase the pressure.

Cause 2: Excessive load.
Solution: Increase the service pressure or increase the cylinder diameter.

Cause 3: Insufficient opening of speed control valve.
Solution: Adjust the opening of the speed control valve.

Cause 4: Insufficient air supply.
Solution: Find out which element between the air source and the cylinder has too large throttling, replace it with a larger diameter element, or use a fast exhaust valve to exhaust the cylinder quickly.

Cause 5: The friction of cylinder increases.
Solution: Improve lubrication.

Cause 6: The cylinder barrel or piston sealing ring is damaged.
Solution: Replace it.

5. Fault 5: The Cylinder Still work After Termination

Cause 1: Internal or external leakage in the cylinder.
Solution: Replace the sealing ring or cylinder.

Cause 2: Air is mixed in the oil of gas-liquid cylinder.
Solution: Remove the air from the oil.
